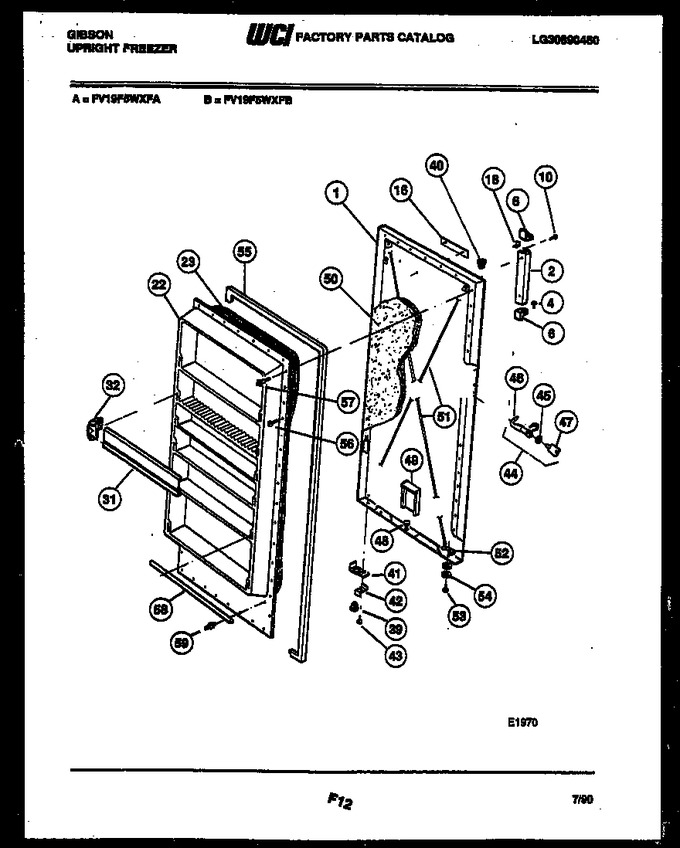

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5311992864		Panel-door (white)		Appelez-nous	-
2	5303209955		Handle Door		Appelez-nous	-
4	F000012236		Screw Handle		Appelez-nous	-
6	5300124647		Handle End Cap-top		Appelez-nous	-
6	5300124648		Handle End Cap-bottom		Appelez-nous	-
10	5303161233		Screw Handle		Appelez-nous	-
16	5303209962		Nameplate Assembly		Appelez-nous	-
18	5300119930		Retainer Handle		Appelez-nous	-
22	F124698-64		Panel-inner (white)		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
31	3017746		Shelf Front Wide (5)		Appelez-nous	-
32	5309948967		End Cap Rh Wide (5)		Appelez-nous	-
32	5309948968		End Cap Lh Wide (5)		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5300190358		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve, Breather				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037981		Wire Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206256		Gasket, Door, White				$ 248.43
56	216858001		Screw Door Panel (22)   (Replaces: 5303161215)			Immediately	$ 10.85
57	08009384		Screw Panel (24)		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303091422		Rivet-gasket (5)		Appelez-nous	-
