SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts

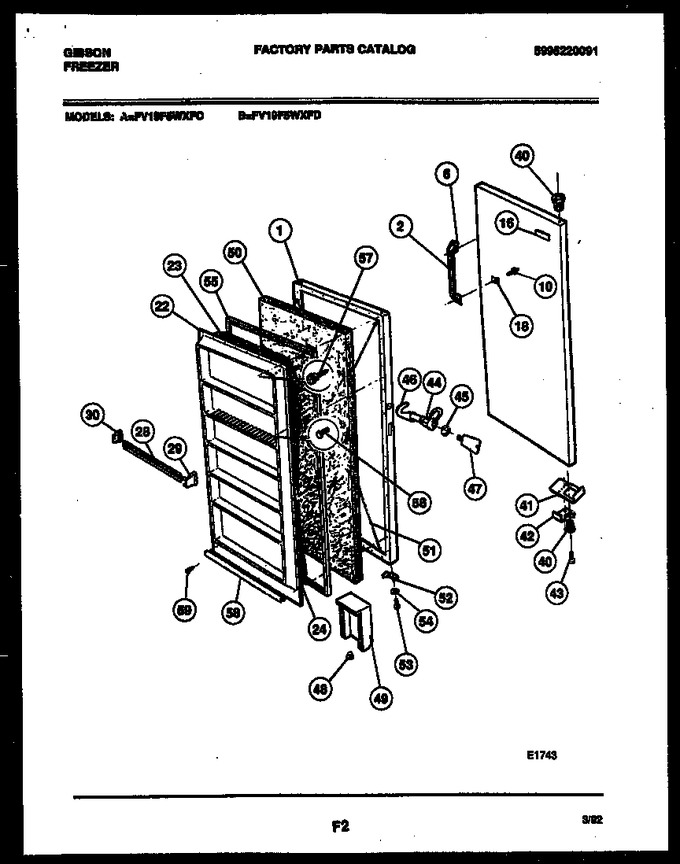

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925092		Door Panel-white		Appelez-nous	-
2	5303209955		Handle Door		Appelez-nous	-
6	5300124647		End Cap Top		Appelez-nous	-
10	5303161233		Screw Handle		Appelez-nous	-
16	5303208918		Nameplate		Appelez-nous	-
18	5300119930		Retainer Handle		Appelez-nous	-
22	216012701		Panel-inner		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
24	09950831		Insulation		Appelez-nous	-
28	3017746		Shelf Front Narrow		Appelez-nous	-
29	5309948967		End Cap Rh Narrow		Appelez-nous	-
30	5309948968		End Cap-lh Narrow		Appelez-nous	-
40	08016490		Bearing-bottom		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	216013800		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve, Breather				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037981		Wire Adjusting		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket		Appelez-nous	-
54	09950839		Washer, Bracket		Appelez-nous	-
55	3206256		Gasket, Door, White				$ 248.43
56	216858001		Screw-door Panel   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw-panel		Appelez-nous	-
58	08009412		Screw		Appelez-nous	-
59	5303212828		Rivet Gasket				$ 16.63
16A	5303285573		Insert Nameplate (non-illustrated)		Appelez-nous	-
40A	5306593364		Bearing-top		Appelez-nous	-
6A	5300124648		End Cap Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
