SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts

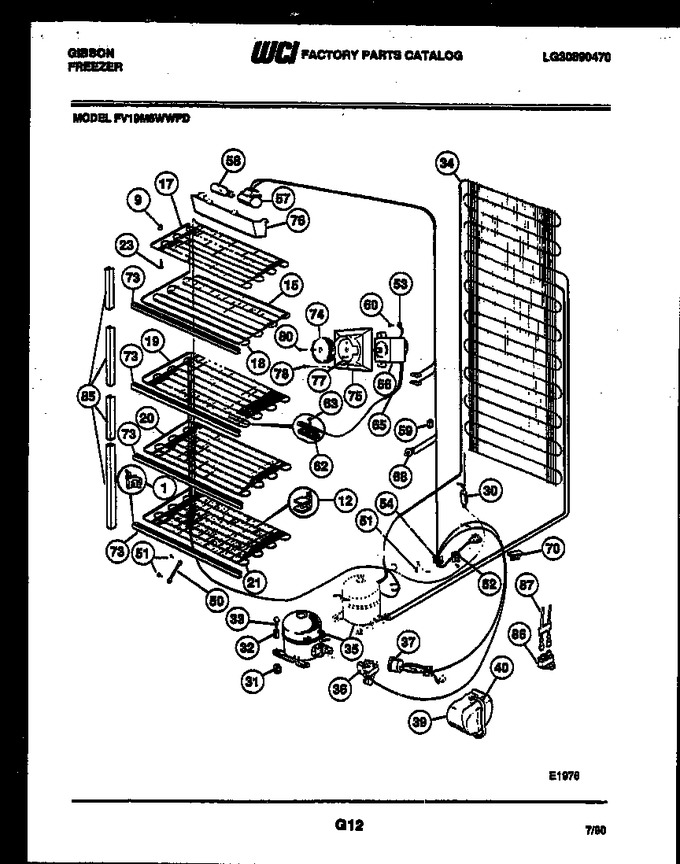

04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297001600 | Support Front-lh (3) (Replaces: 3091418) |
|
$ 18.08 | |||||
| 9 | 5300081445 | Spcr-topgrid Front (2) |
|
- | |||||
| 12 | 09949960 | Support, Rear |
|
- | |||||
| 15 | 08010753 | Heat Exchanger |
|
- | |||||
| 17 | 08037983 | Top Grid |
|
- | |||||
| 18 | 08037975 | First Shelf |
|
- | |||||
| 19 | 08037976 | Second Shelf |
|
- | |||||
| 21 | 08037977 | Bottom Shelf |
|
- | |||||
| 23 | 08013446 | Screw Top Grid |
|
- | |||||
| 30 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 31 | 216498900 | Grommet (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 32 | 5306594529 | Sleeve |
|
$ 10.34 | |||||
| 33 | 08002679 | Screw |
|
- | |||||
| 34 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 35 | 5303916020 | Compressor |
|
- | |||||
| 36 | 5303017753 | Relay |
|
- | |||||
| 37 | 5308037789 | Overload |
|
- | |||||
| 39 | 5303006411 | Cover, Terminal |
|
- | |||||
| 40 | 5303006412 | Clamp Cover |
|
- | |||||
| 50 | 06594651 | Wire, Ground |
|
- | |||||
| 51 | 08009412 | Screw |
|
- | |||||
| 52 | 5303017718 | Clamp Service Cord |
|
- | |||||
| 53 | 5300125347 | Ground Wire |
|
- | |||||
| 54 | F000128540 | Wiring Harness |
|
- | |||||
| 56 | 5308016351 | Cold-control |
|
$ 180.40 | |||||
| 57 | 5300136117 | Light Socket |
|
$ 52.46 | |||||
| 58 | 5303091423 | Light Bulb |
|
- | |||||
| 59 | 08037401 | Retainer Harness (5) |
|
$ 2.85 | |||||
| 60 | 08009412 | Screw |
|
- | |||||
| 62 | 08037931 | Clamp-capillary |
|
- | |||||
| 63 | 5300052943 | Screw Capillary Clamp |
|
$ 5.30 | |||||
| 65 | 5308037932 | Sleeve Control Cap Tube |
|
- | |||||
| 68 | 5308037962 | Light Switch |
|
- | |||||
| 70 | 06599553 | Clip, Wires |
|
- | |||||
| 73 | F120875-02 | Shelf Trim |
|
- | |||||
| 74 | 5303209930 | Knob-cold Control |
|
- | |||||
| 75 | 08016370 | Housing Cold Control |
|
- | |||||
| 76 | F128374 | Light Shield |
|
- | |||||
| 77 | 08003539 | Screw Control To Cover |
|
- | |||||
| 78 | 5300050149 | Screw Cover To Liner |
|
- | |||||
| 80 | 09950853 | Screw, Knob |
|
- | |||||
| 85 | F117243-4 | Tube Cover |
|
- | |||||
| 1A | 297001600 | Support-front Rh (3) (non-illustrated) (Replaces: 3091418) |
|
$ 18.08 | |||||
| 9A | 08037929 | Spcr-top Grid Rear (non-illustrated) |
|
- |
