SELECT A DIAGRAM

01 - Body/oven


02 - Control Panel


03 - Door/drawer


04 - Gas Controls (electronic)

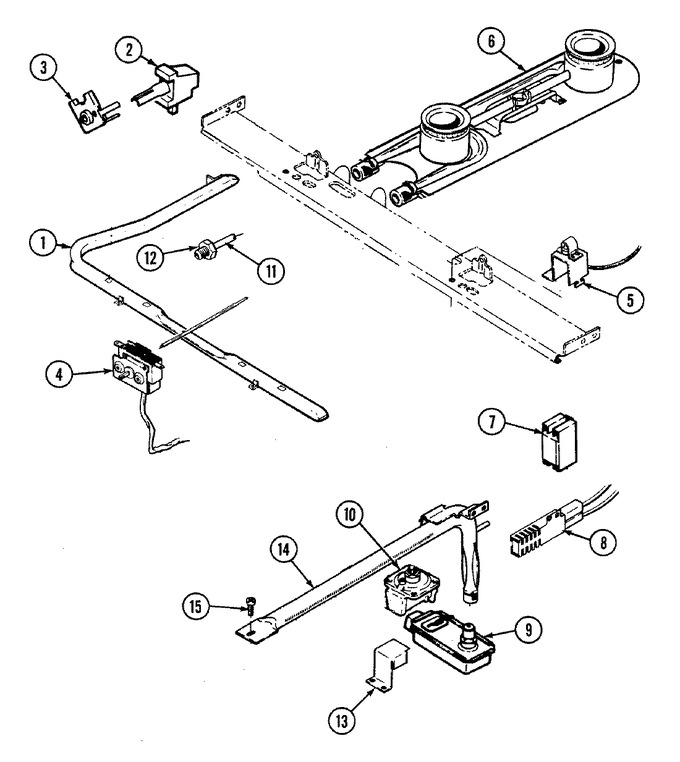

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7513P105-60		Pipe, Manifold		Appelez-nous	-
2	7101P044-60		Screw, Valve		Appelez-nous	-
2	7502P174-60		Valve, Top Burner		Appelez-nous	-
3	7403P284-60		Switch, Burner				$ 55.80
4	7404P087-60		Thermostat				$ 197.47
4	3604F177-51		Shield, Thermostat		Appelez-nous	-
4	7101P280-60		Screw W/washer (blk)		Appelez-nous	-
5	7432P008-60		Igniter, Top (lt)		Appelez-nous	-
5	7432P031-60		Igniter, Top (rt)		Appelez-nous	-
5	W11233072		Screw, Housing   (Replaces: 7118P015-60)			Immediately	$ 12.62
6	3412A004-19		Burner, Top		Appelez-nous	-
7	3807F432-45		Support, Spark Module		Appelez-nous	-
7	7431P006-60		Module, Spark		Appelez-nous	-
8	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)				$ 4.29
8	12400035		Igniter, Oven   (Replaces: 7432P067-60)			Immediately	$ 60.44
9	7501P099-60		Valve, Oven		Appelez-nous	-
10	WP74006429		Regulator, Pressure W/fitting   (Replaces: 7510P050-60)				$ 282.77
10	8020P007-60		Bracket, Regulator		Appelez-nous	-
10	7507M125-60		Union Pipe Fitting (female)		Appelez-nous	-
11	3414F104-44		Tubing - Regulator & Pipe		Appelez-nous	-
12	1555251		Nut, Loxit (3/8``)		Appelez-nous	-
13	4005F334-51		Cover, Valve		Appelez-nous	-
14	3403D023-45		Burner, Oven		Appelez-nous	-
15	4005F423-51		Cover, Thermostat		Appelez-nous	-
15	W11233072		Screw   (Replaces: 7101P290-60)			Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
