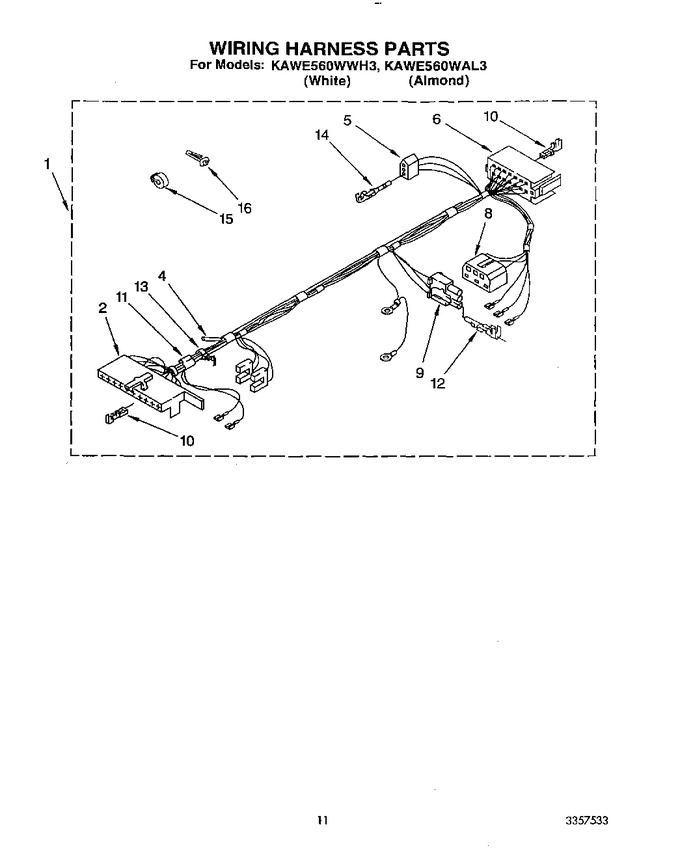

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3357486		Wiring Harness & Pressure Switch Hose		Appelez-nous	-
2	WP62505		Block, Disconnect (motor)   (Replaces: 62505)				$ 21.35
4	WP353244		Hose, Pressure Switch   (Replaces: 386757)			Immediately	$ 53.94
5	353424		Plug Terminal (power Cord)				$ 18.95
6	W10876590		Block, Disconnect (timer) (black)   (Replaces: 352089)				$ 11.48
8	3347243		Connector, Temp. Switch		Appelez-nous	-
9	WP62889		Receptacle, Terminal (lid Switch)   (Replaces: 62889)				$ 6.88
10	3371761		Terminal, Female		Appelez-nous	-
11	63523		Protector, Harness				$ 169.95
12	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
13	62749		Clip, Harness				$ 18.77
14	94613		Terminal, (male)		Appelez-nous	-
15	8559320		Clip, Harness   (Replaces: 3352501)				$ 41.27
16	3390496		Clip, Harness		Appelez-nous	-
