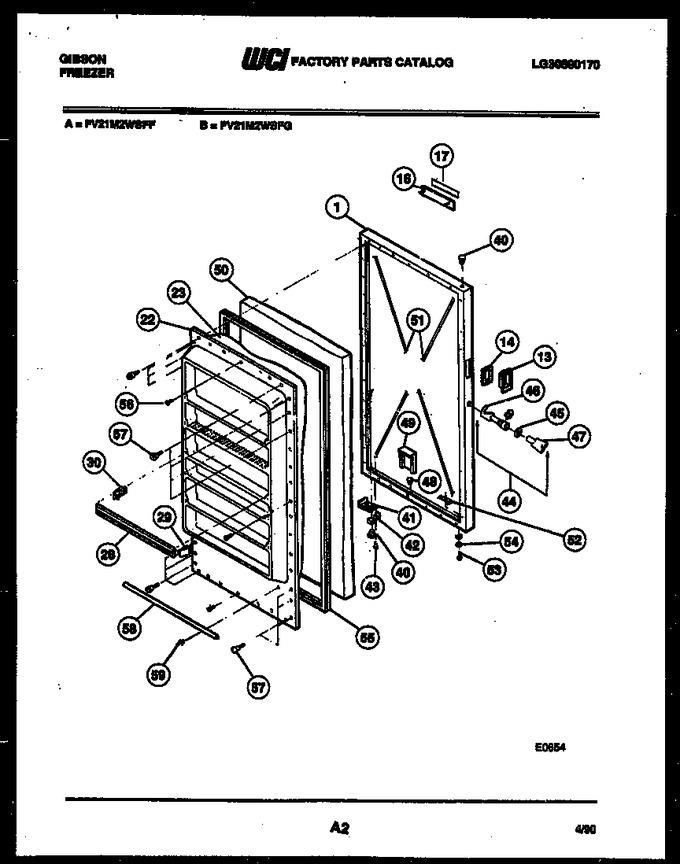

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F126594-S		Door Panel		Appelez-nous	-
13	5300112637		Handle Recessed		Appelez-nous	-
14	08009392		Gasket Handle		Appelez-nous	-
16	F128767		Nameplate Bezel		Appelez-nous	-
17	F300246		Insert Nameplate		Appelez-nous	-
22	F124705-95		Panel-inner		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	3017181		Shelf Front Narrow (6)		Appelez-nous	-
29	5303925377		End Cap Rh Narrow (6)   (Replaces: 5308015541)			Immediately	$ 46.07
30	5303925377		End Cap Lh Narrow (6)   (Replaces: 5308015542)			Immediately	$ 46.07
40	08016490		Bearing-bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5300190358		Lock-complete		Appelez-nous	-
45	5300114366		Sealing Washer Lock		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve, Breather				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037986		Wire Adjusting (3)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206261		Gasket Door				$ 254.52
56	216858001		Screw Door Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
57	08009384		Screw Panel (24)		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303091422		Rivet-gasket (5)		Appelez-nous	-
