01 - Cabinet (aae & Aam)


02 - Control Panel (aae & Aam)


03 - Door (aae & Aam)


04 - Gas Carrying (aae & Aam)


05 - Motor & Drive (aae & Aam)


06 - Tumbler (aae & Aam)


07 - Wiring Information (aae & Aam)

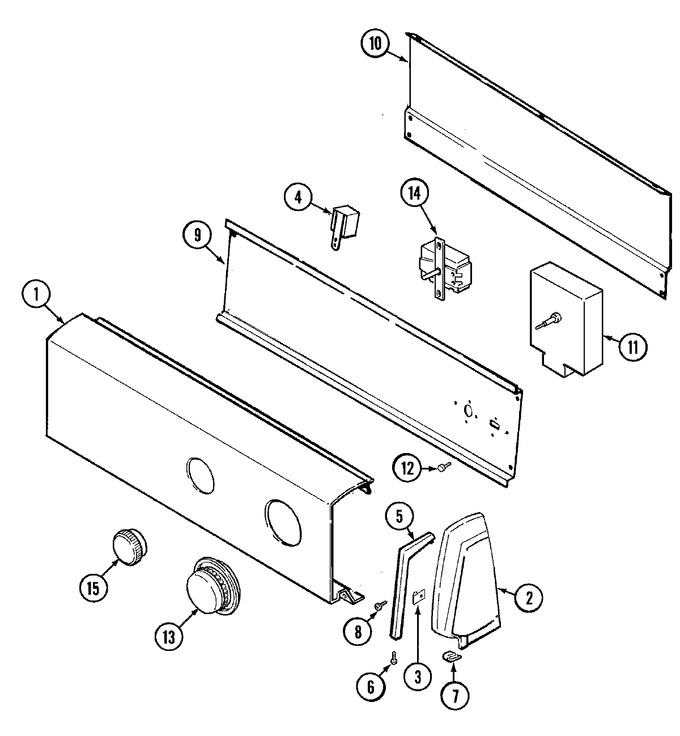

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001062		Panel, Control	10	Appelez-nous	-
1	31001170		Panel, Control	12	Appelez-nous	-
2	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
2	25-7697		Screw	10	Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl	10	Appelez-nous	-
2	21001069		Cap, End (alm) (rt)	10	Appelez-nous	-
2	21001070		Cap, End (alm) (lt)	10	Appelez-nous	-
2	25-7649		Screw	10	Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
3	25-7697		Screw	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	53-1639		Buzzer Assy.	10	Appelez-nous	-
5	31001056		Trim, Endcap (rt)(alm)	10	Appelez-nous	-
5	31001057		Trim, Endcap (lt)(alm)	10	Appelez-nous	-
6	25-7760		Screw	10	Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl	10	Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
9	31001128		Shield, Control	11	Appelez-nous	-
9	53-2504		Spacer, Control Shield	10	Appelez-nous	-
9	53-1676		Shield, Control	10	Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)	10	Appelez-nous	-
11	53-1758		Timer	10	Appelez-nous	-
12	WP33002917		Screw   (Replaces: 25-7435)	10		Immediately	$ 6.90
13	31001053		Knob & Skirt Assy.	10	Appelez-nous	-
14	53-0456		Switch, Selector (heat)	10	Appelez-nous	-
14	31001150		Switch, Heat	11	Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
15	21001073		Knob, Selector (alm)	10	Appelez-nous	-
16	31001093		Manual, Use & Care	10	Appelez-nous	-
16	31001008		Manual, Use & Care	10	Appelez-nous	-
17	16002079		Guide, Quick Ref - Admiral	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
