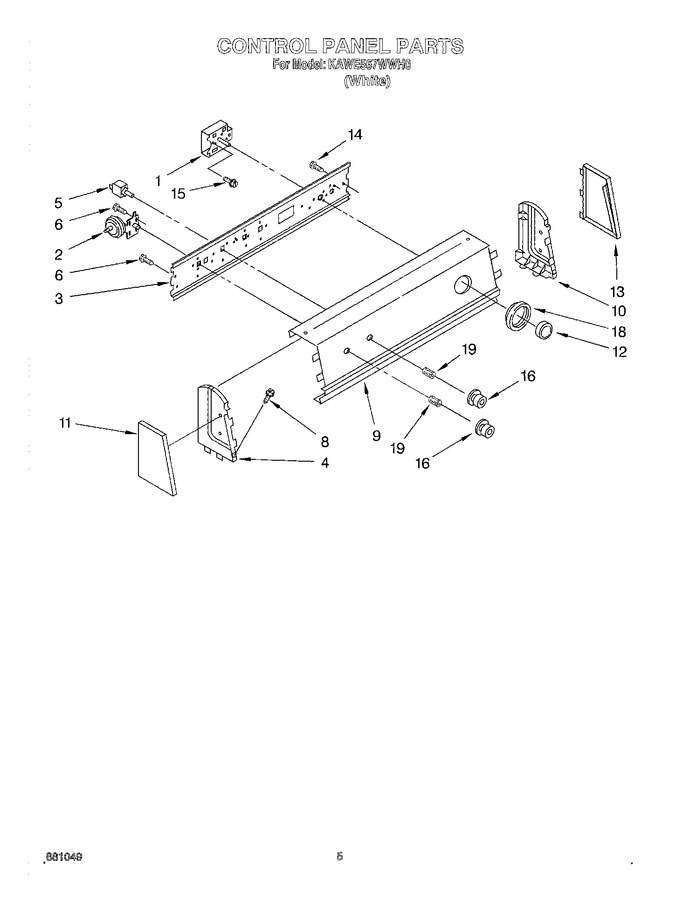

03 - Control Panel


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Agitator, Basket And Tub


06 - Miscellaneous


07 - Machine Base


08 - Wiring Harness


09 - Gearcase


10 - Brake And Drive Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3355825CP		Timer, Control 60hz. (motor Not Serviced)   (Replaces: 3355825)		Appelez-nous	-
2	3350762		Switch, Water Level		Appelez-nous	-
3	3349232		Bracket, Control		Appelez-nous	-
4	3354641		Cap, End (l.h.)		Appelez-nous	-
5	3348352		(alt.)		Appelez-nous	-
5	3347117		(alt.)		Appelez-nous	-
5	661538		Switch, Water Temperature		Appelez-nous	-
6	WP90767		Screw, No.8 Mounting (2)   (Replaces: 3348629)			Immediately	$ 7.04
8	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
9	3361135		Console, Panel		Appelez-nous	-
10	3354647		Cap, End (r.h.)		Appelez-nous	-
11	3353685		Trim, Endcap (l.h.)		Appelez-nous	-
12	3349234		Knob, Timer		Appelez-nous	-
13	3353678		Trim, Endcap (r.h.)		Appelez-nous	-
14	WP3351614		Screw, 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
15	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
16	3396271		Knob, Control		Appelez-nous	-
18	3349244		Dial, Timer		Appelez-nous	-
19	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.03
