SELECT A DIAGRAM

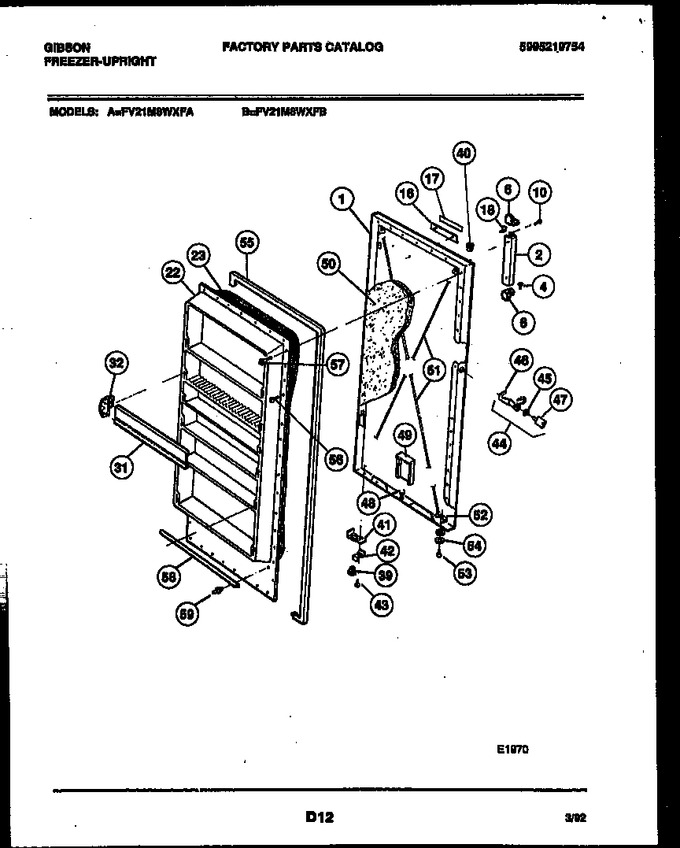

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925049		Panel-door (white)		Appelez-nous	-
2	5303209955		Handle Door		Appelez-nous	-
4	F000012236		Screw Insert To Handle		Appelez-nous	-
6	5300124647		Handle End Cap-top		Appelez-nous	-
6	5300124648		Handle End Cap-btm		Appelez-nous	-
10	5303161233		Screw Handle		Appelez-nous	-
16	5303208918		Nameplate Bezel		Appelez-nous	-
17	5303211086		Insert Nameplate		Appelez-nous	-
18	5300119930		Retainer Handle (2)		Appelez-nous	-
22	F124705-64		Panel-inner (white)		Appelez-nous	-
23	09950831		Insulation Dike		Appelez-nous	-
31	5303211087		Shelf Front Wide (6)		Appelez-nous	-
32	5309948970		End Cap, Rh, Wide (6)		Appelez-nous	-
32	09948971		End Cap-lh		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement Dr Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Sealing Washer Lock		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve Breather (2)				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037986		Wire, Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206261		Gasket-door (white)				$ 254.52
56	216858001		Screw Door Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
57	08009384		Screw Panel (24)		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303091422		Rivet-gasket (5)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
