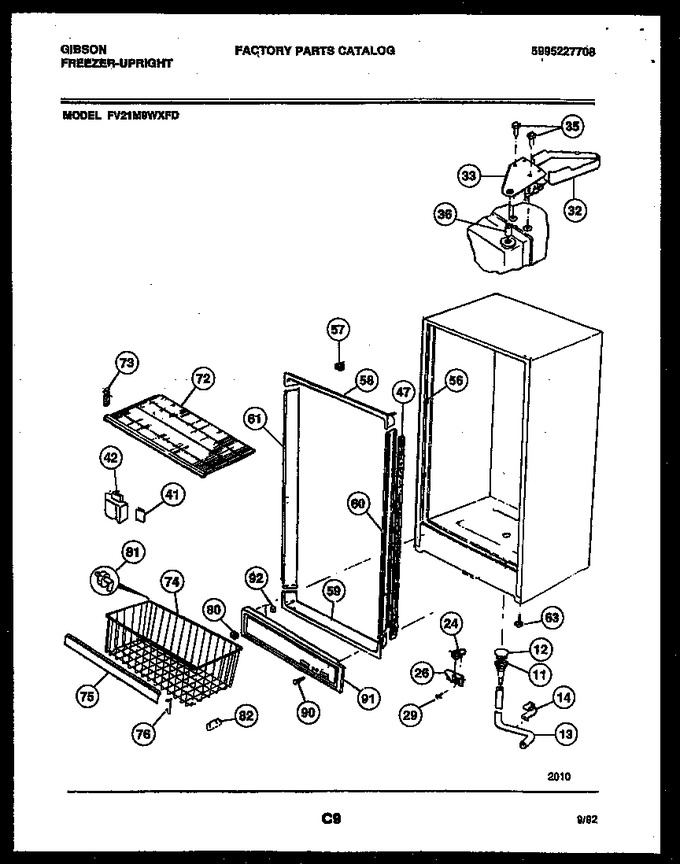

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug-drain		Appelez-nous	-
13	5308037944		Hose Drain		Appelez-nous	-
14	06593405		Clamp		Appelez-nous	-
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	5303210383		Hinge, Bottom		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303212912		Cover, Hinge-white		Appelez-nous	-
33	5303212935		Hinge, Top		Appelez-nous	-
35	5303212937		Screw-hinge		Appelez-nous	-
36	5303210387		Pin-hinge		Appelez-nous	-
39	216858001		Screw-latch Catch   (Replaces: 5303161215)			Immediately	$ 10.85
41	216013700		Clip Lock		Appelez-nous	-
42	216013600		Support, Lock		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer-top Breaker (2)		Appelez-nous	-
58	06594561		Breaker, Top		Appelez-nous	-
59	06594562		Breaker, Bottom		Appelez-nous	-
60	5303288189		Breaker Hinge		Appelez-nous	-
61	216014400		Breaker Lock Side		Appelez-nous	-
63	5303205540		Leveling Leg (4)		Appelez-nous	-
72	5300121577		Dry Shelf		Appelez-nous	-
73	08016352		Support Dry Shelf (2)		Appelez-nous	-
74	08011883		Basket		Appelez-nous	-
75	5303209970		Handle-basket		Appelez-nous	-
76	09950862		End Cap		Appelez-nous	-
80	5305878546		Basket Stop (2)				$ 7.23
81	09948791		Stop, Basket		Appelez-nous	-
82	08009560		Glide Basket (4)				$ 35.25
90	5309950066		Pin Fastener (2)		Appelez-nous	-
91	5303209972		Toe Grille		Appelez-nous	-
92	5300118003		Bumper (3)		Appelez-nous	-
82A	5303285695		Spacers Basket (4) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
