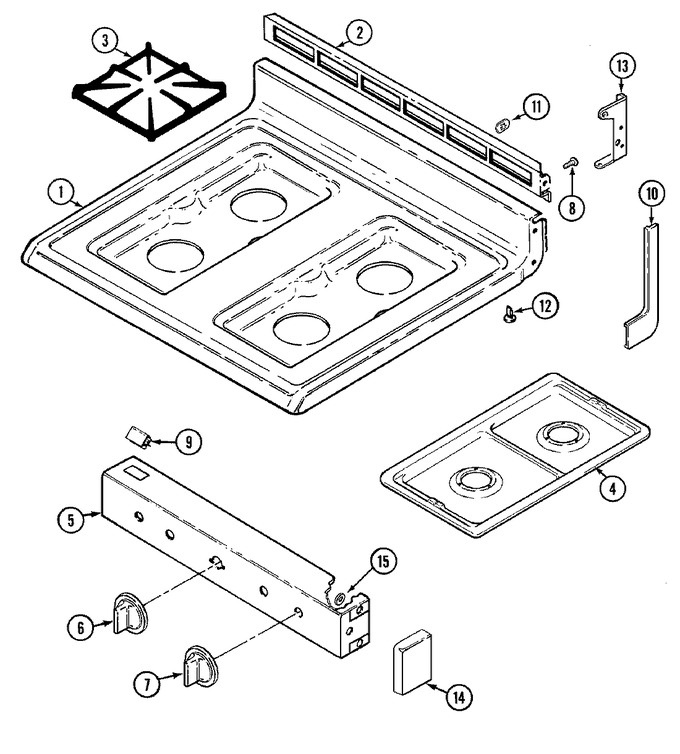

01 - Body/oven
02 - Control Panel
03 - Door/drawer (3221xrx)
04 - Gas Controls
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W081-30 | Top, Main (stls) | 01 |
|
- | ||||
| 2 | 3608F042-09 | Trim, Vent (blk) | 01 |
|
- | ||||
| 3 | 2003W023-00 | Grate (blk) | 01 |
|
- | ||||
| 4 | 5401A452-60 | Drip Bowl Kit (accessory) | 01 |
|
- | ||||
| 5 | 2616F102-09 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 6 | 7731P071-60 | Knob, Thermostat (blk) | 01 |
|
$ 39.24 | ||||
| 7 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P027-60) | 01 |
|
$ 25.06 | ||||
| 8 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 01 |
|
$ 11.92 | ||||
| 9 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 10 | 7746P030-60 | End Cap (rt-blk) | 01 |
|
$ 26.16 | ||||
| 10 | 7746P031-60 | End Cap (lt-blk) | 01 |
|
$ 26.25 | ||||
| 11 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 12 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 13 | 3418D097-60 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 13 | 3418D098-60 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 14 | 7713P018-60 | End Cap, Panel (blk) | 01 |
|
- | ||||
| 15 | 7112P092-60 | Clip, Spring Grip | 01 |
|
- |
