SELECT A DIAGRAM

01 - Cover


03 - Control Panel

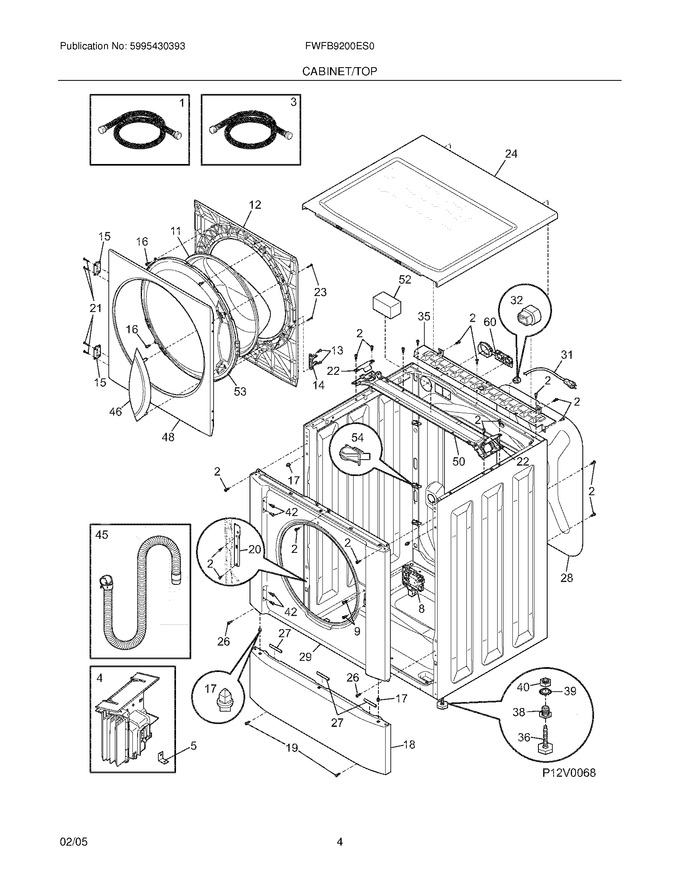

05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131279602		Hose,water Inlet ,cold		Appelez-nous	-
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
3	5303912532		Hose,water Inlet ,hot   (Replaces: 131279603)				$ 88.20
5	134522900		Bracket,l ,motor Control				$ 13.01
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
11	134366400		Panel,door Glass				$ 313.91
12	134507300		Panel,inner Door				$ 135.66
13	131302901		Screw,10-16 X 0.750				$ 4.96
14	131763310		Striker,door/lock/sw			Immediately	$ 17.15
15	134412400		Hinge,door				$ 55.13
16	134178901		Screw,quadrex Ph ,8-18ab X 0.500   (Replaces: 131311900)				$ 14.89
17	134408700		Clip,assembly				$ 8.35
18	134321702		Panel,front Service ,white   (Replaces: 134321703)				$ 139.33
19	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
20	134434901		Bracket,reinforcement ,lh Side Panel				$ 43.73
21	137361500		Screw,comb Flat Head ,8-18ab X 0.75   (Replaces: 134424700)				$ 7.79
22	134364700		Retainer,spring Steel		Appelez-nous	-
23	134522100		Screw,no.12 Flat Head ,10-14p ,quad Drive				$ 18.90
24	134365000		Panel,work Top ,white		Appelez-nous	-
26	134521600		Screw,hex Washer Head ,m5 0.8 X 15				$ 2.63
27	134408800		Bumper,rubber		Appelez-nous	-
28	134364300		Panel,service Access ,rear				$ 54.39
29	134363300		Panel,cabinet Front ,white		Appelez-nous	-
32	5303209428		Bushing,power Cord				$ 17.01
35	134365100		Bracket,top Support ,rear				$ 150.99
36	131841602		Leveling Leg Assy,bolt,pad & Nut		Appelez-nous	-
38	5303937190		Bushing,leveling Leg   (Replaces: 134527200)				$ 65.92
39	134364100		Washer,spring Lock				$ 2.47
40	134364000		Nut,leveling Leg				$ 3.57
42	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
46	134472202		Handle,door				$ 256.04
48	134412103		Panel,outer Door ,white		Appelez-nous	-
50	134364600		Bracket,tub Suspension				$ 60.64
52	131931201		Dampener,vibration ,3.5 X 2 X 2 In. ,foam				$ 14.02
53	134507403		Adapter,door Glass Ring				$ 412.97
54	134364900		Fastener,wire Harn Clip		Appelez-nous	-
60	134372000		Grommet,dispenser ,back Panel				$ 30.47
F31	5304505407		Power Cord,electric Svce   (Replaces: 134501000)				$ 88.20
F4	134743500		Control Board,motor   (Replaces: 134409900)			Immediately	$ 236.87
F45	134369400		Hose,drain ,external		Appelez-nous	-
F8	131763256		Door Lock/switch Assy   (Replaces: 131763200)			Immediately	$ 146.76
NI	134511500		Shipping Support Kit				$ 175.59
NI	134514100		Plug Assy,shipping Holes ,unit Back		Appelez-nous	-
NI	134372800		Wiring Harness,motor Control				$ 78.91
NI	134434900		Bracket,reinforcement ,rh Side Panel		Appelez-nous	-
NI	134367400		Wiring Harness,door Switch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
