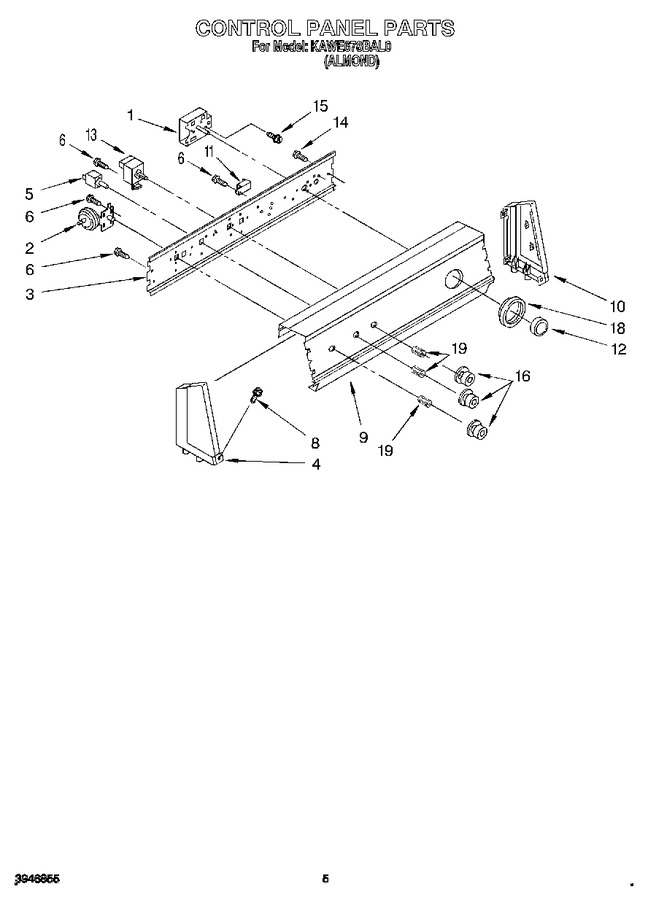

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3946476		Timer, Control 60hz. (motor Not Serviced)   (Replaces: 3362038)				$ 319.30
2	3362135		Switch, Water Level		Appelez-nous	-
3	WP3948608		Bracket, Control   (Replaces: 3360936)				$ 104.57
4	3360572		Cap, End (l.h.) (for Almond Model)		Appelez-nous	-
5	3348352		(alt.)		Appelez-nous	-
5	3347117		(alt.)		Appelez-nous	-
5	3347122		Switch, Water Temperature		Appelez-nous	-
6	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
8	WP388326		Screw, Console   (Replaces: 3353145)				$ 7.30
9	3363407		Console, Panel (for Almond Model)		Appelez-nous	-
10	3360569		Cap, End (r.h.) (for Almond Model)		Appelez-nous	-
11	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
12	3349235		Knob, Timer		Appelez-nous	-
13	3361225		Switch, Rotary		Appelez-nous	-
14	WP3351614		Screw, 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
15	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
16	3362610		Knob/controls		Appelez-nous	-
18	3362587		Dial, Timer (for Almond Model)		Appelez-nous	-
19	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.03
