SELECT A DIAGRAM

01 - Cover


02 - Wshr Cab,top


04 - Wshr Mtr,hose


06 - Transmission

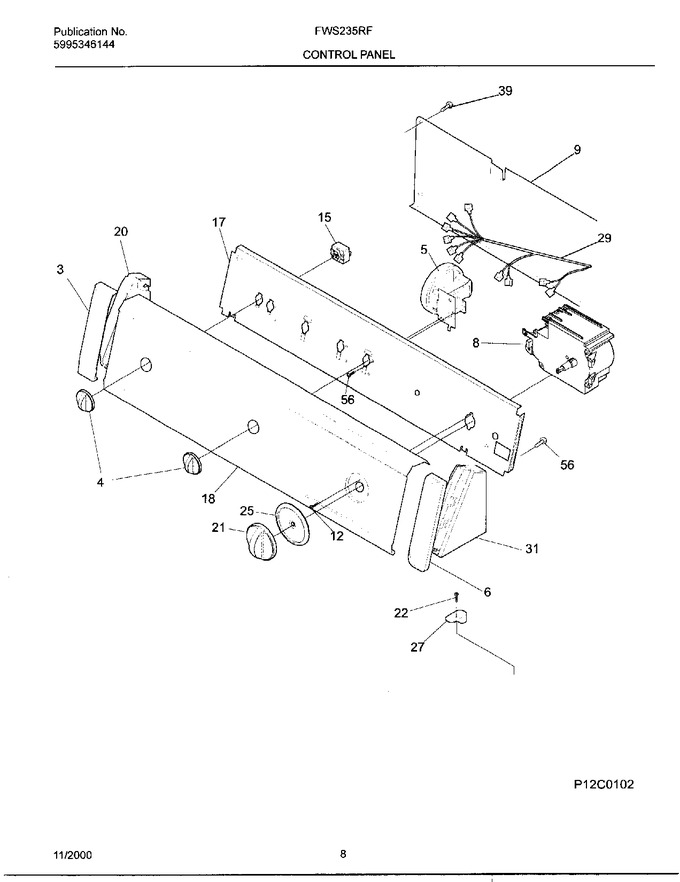

08 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131122611		Cover-end Cap, White, Lh				$ 42.21
3	131122612		Cover-end Cap, Almond, Lh		Appelez-nous	-
4	131141102		Knob-rotary-almond		Appelez-nous	-
4	131141101		Knob-rotary, White/blue		Appelez-nous	-
6	131122601		Cover-end Cap, White, Rh				$ 47.20
6	131122602		Cover-end Cap, Almond, Rh		Appelez-nous	-
8	131758600		Timer-washer			Immediately	$ 352.01
9	131141730		Backsheet		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
15	131047000		Switch-temperature		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	131890900		Trimplate Fda7jssfd		Appelez-nous	-
18	131890700		Trimplate Fd/fca7jssfw		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
20	131122712		End Cap, Almond, Lh		Appelez-nous	-
21	131592002		Knob-timer-almond		Appelez-nous	-
21	131592001		Knob-timer White				$ 45.57
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592101		Pointer-timer-wht		Appelez-nous	-
25	131592102		Pointer-timer Alm		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131982500		Harn J 1sp Rot Temp Emer		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
31	131122702		End Cap, Almond, Rh		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
F5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
NI	131507700		Spacer Pad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
