SELECT A DIAGRAM

02 - Top And Cabinet , Literature And Optional


03 - Rear Panel

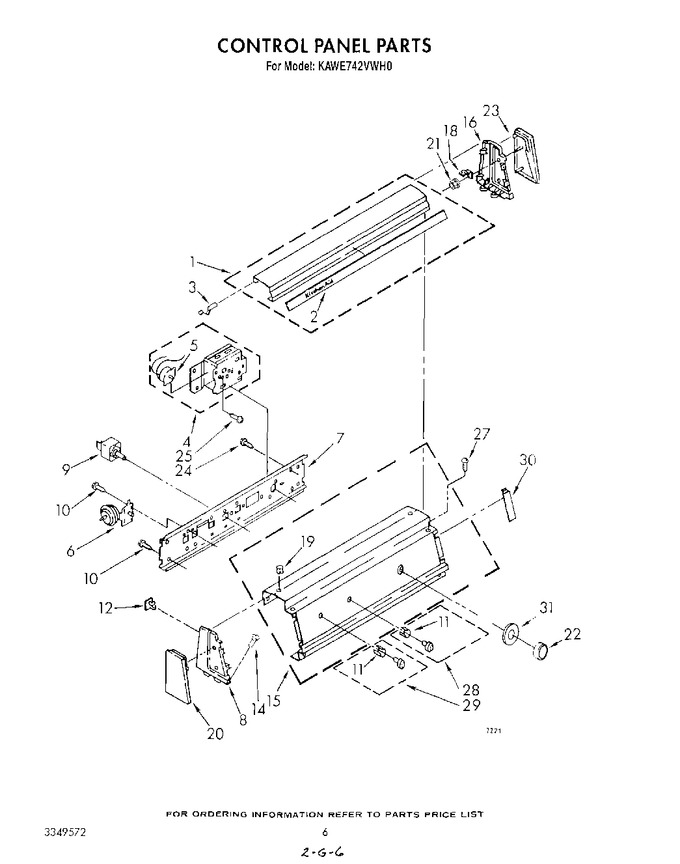

04 - Control Panel


05 - Agitator, Basket And Tub


06 - Miscellaneous


07 - Brake, Clutch, Gearcase, Motor And Pump


08 - Machine Base


09 - Wiring Harness


10 - Gearcase


11 - Brake And Drive Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3352306		Cover, Console		Appelez-nous	-
2	3352304		Insert, Console Pad		Appelez-nous	-
3	3347112		Hinge, Lamp Cover		Appelez-nous	-
4	3349207CP		Timer, Control 60 Hz,   (Replaces: 3349207)		Appelez-nous	-
5	63493		Motor, Timer		Appelez-nous	-
6	3350764		Switch, Water Level		Appelez-nous	-
7	3349232		Bracket, Control		Appelez-nous	-
8	388503		Cap, End (l.h.)		Appelez-nous	-
9	3347122		Switch, Water Temperature		Appelez-nous	-
10	WP90767		Screw, No.8 Mounting (5)   (Replaces: 3348629)			Immediately	$ 7.04
11	WP688805		Clip, Knob (2)   (Replaces: 688805)			Immediately	$ 7.03
12	689559		Nut, Push-in		Appelez-nous	-
14	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
15	3352548		Panel, Console		Appelez-nous	-
16	388504		Cap, End (r.h.)		Appelez-nous	-
18	3349048		Bracket, End Cap		Appelez-nous	-
19	387887		Plug, Latch		Appelez-nous	-
20	388745		Trim, Endcap		Appelez-nous	-
21	388744		Nut, No.10 Thread		Appelez-nous	-
22	3349233		Knob, Timer		Appelez-nous	-
23	388746		Trim, End Cap (r.h.)		Appelez-nous	-
24	WP3351614		Screw, 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
25	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
27	310629		Screw (2) 8-32 X 3/8		Appelez-nous	-
28	3351726		Knob, Water Temperature		Appelez-nous	-
29	3351726		Knob, Water Level		Appelez-nous	-
30	3349338		Spacer, Console (2)		Appelez-nous	-
31	3349243		Dial, Timer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
