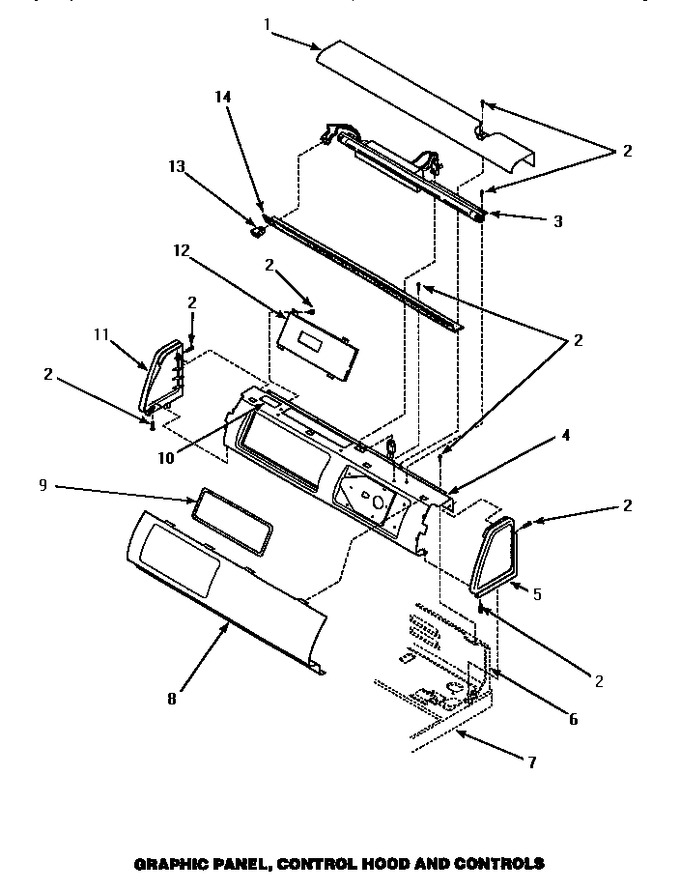

05 - Graphic Panel, Control Hood & Controls


06 - Heater Box Assy (original)


07 - Heater Box Assy (replacement)


08 - Loading Door With Drying Rack


09 - Lower Access Panel, Front Panel & Seal


10 - Motor, Exhaust Fan & Belt


11 - Mtr Conn Block/term & Extractor Tool


12 - Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	500302		Cover,top		Appelez-nous	-
2	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
3	34837		Bulb,fluorescent		Appelez-nous	-
3	34836		Assy,fluorescent Light		Appelez-nous	-
3	34841		Starter,fluorescent		Appelez-nous	-
4	500301		Bracket,electronic Control		Appelez-nous	-
5	34815		Panel, End R.h. (blk)		Appelez-nous	-
6	Y00000000		See Note Control Hood Rear Panel		Appelez-nous	-
7	Y00000000		See Note Cabinet Top		Appelez-nous	-
8	500757		Panel,graphic		Appelez-nous	-
9	Y500528		Gasket,electronic Control		Appelez-nous	-
10	24903		Sticker,disconnect Pow		Appelez-nous	-
11	34816		Panel, End (blk,l.h.)		Appelez-nous	-
12	501273		Timer		Appelez-nous	-
13	35037		Rocker Switch		Appelez-nous	-
14	500308		Diffuser W/hole		Appelez-nous	-
	NOTE:		If Dryer Is Installed In A Manufactured (mobile) Home, Or If Local Codes Do Notpermit Grounding Through The Neutral, This Wire Will Not Be Connected To The Dr		Appelez-nous	-
