SELECT A DIAGRAM

01 - Cover


02 - P12v0019 Wshr Cab,top


03 - P12t0037 Wshr Mtr, Hose


04 - P12m0007 Transmission

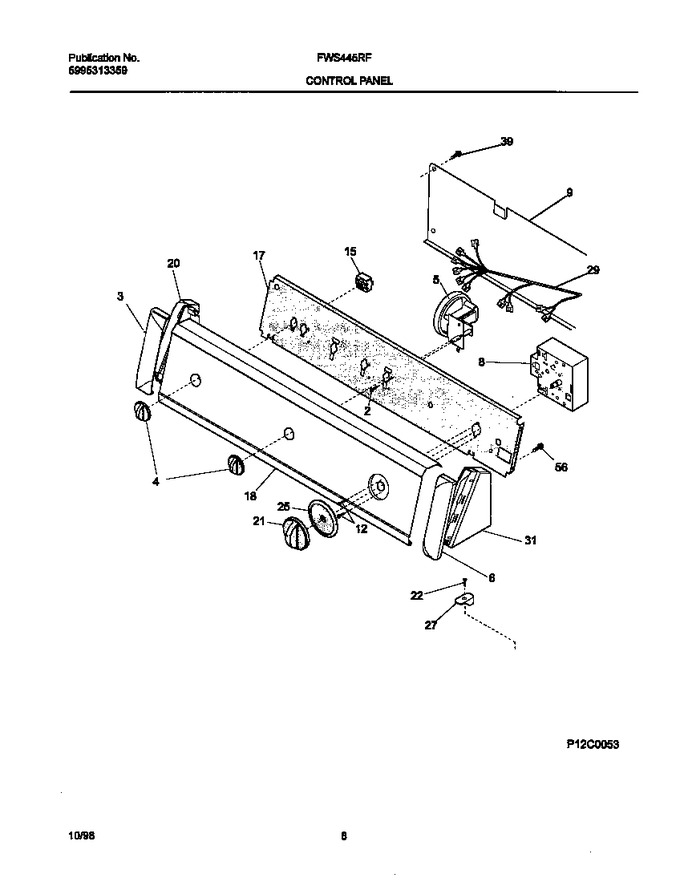

05 - P12c0053 Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141101		Knob-rotary, White/blue		Appelez-nous	-
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	131773900		Timer-washer		Appelez-nous	-
9	131141701		Backsheet-console		Appelez-nous	-
12	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
15	131081200		Switch-temperature		Appelez-nous	-
17	131580000		Bracket-control		Appelez-nous	-
18	131681600		Panel-control,whte		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131592001		Knob-timer				$ 45.57
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592101		Dial-timer		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131773800		Harness-washer Wiring		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
*75043	131507700		Spacer Pad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
