SELECT A DIAGRAM

01 - Cover


02 - Cabinet/top

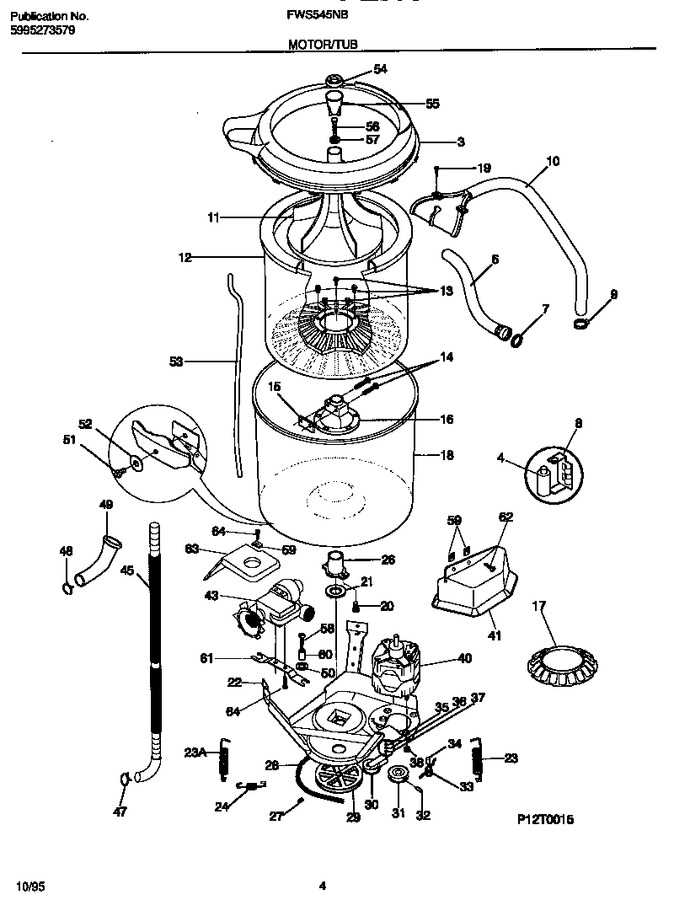

03 - Motor/tub


04 - Transmission


05 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131221500		Cover, Splash Tub		Appelez-nous	-
4	131212302		Capacitor		Appelez-nous	-
6	3804FF		Hose-inlet   (Replaces: 5303271009)			Immediately	$ 16.80
7	5303161296		Washer-inlet Hose			Immediately	$ 2,372.96
8	5303161252		Bracket-capacitor		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	3204400		Hose & Nozzle		Appelez-nous	-
11	131427200		Agitator				$ 246.02
12	131221300		Tub-spin		Appelez-nous	-
13	137546400		Screw-trunnion,unc2ax.625 `.312-18 ,(5)   (Replaces: 5303283293)				$ 28.35
14	137539500		Screw-lockplate, Hx, .312-18 X .1.625   (Replaces: 131192800)				$ 20.24
15	137107000		Lockplate   (Replaces: 5308001923)			Immediately	$ 26.94
16	131154501		Trunnion		Appelez-nous	-
17	131219900		Filter, Lint				$ 71.40
18	131444900		Tub-splash		Appelez-nous	-
19	131205300		Screw, 10-16 X .75			Immediately	$ 12.10
20	3205150		Screw-tub Bearing, Pph B St/z, 8-12 X .75				$ 3.55
21	5308002401		Washer, Spin Bearing, Upper			Immediately	$ 16.00
22	131373610		Leg & Dome Assy				$ 313.43
23	134886600		Spring-vertical (short)   (Replaces: 5303208858)			Immediately	$ 37.57
23	134885900		Spring-vertical   (Replaces: 5303208860)				$ 21.27
24	131373900		Spring-horizontal				$ 41.30
26	3204405		Bearing-outer Tub			Immediately	$ 97.81
27	5303304825		Screw-set, Hhd Cup Pt, 5/16-18 X .85, Pulley, Transm.		Appelez-nous	-
28	134511600		Belt-washer   (Replaces: 131234000)			Immediately	$ 28.41
29	131361800		Pulley-transmission		Appelez-nous	-
30	3204422		Arm-idler		Appelez-nous	-
31	3204423		Pulley-motor				$ 140.07
32	3204424		Pin-roll				$ 12.60
33	3204425		Spring Torsion				$ 45.09
34	3204426		Sleeve-idler				$ 9.35
35	3161433		Ring-retaining				$ 18.79
36	5303261031		Washer-pivot Shaft				$ 12.71
37	5303161306		Washer-spring				$ 12.49
38	5303283079		Nut-lock, Motor		Appelez-nous	-
40	5303309707		Motor-main		Appelez-nous	-
41	131474500		Shield-motor		Appelez-nous	-
43	131268401		Pump-complete			Immediately	$ 254.47
47	5303294768		Clamp-drain Hose		Appelez-nous	-
48	5304536802		Clamp-pump Hose   (Replaces: 131306234)			Immediately	$ 4.01
49	131434500		Hose-pump To Tub				$ 101.75
50	131268600		Grommet-pump		Appelez-nous	-
51	3204459		Screw-leg To Tub, Hwh 23, .31-18 X .875				$ 24.20
52	131315800		Washer-leg, Idx.040, 1.25 Odx.335		Appelez-nous	-
53	5304401845		Tube, Pressure   (Replaces: 5300771996)				$ 58.12
54	131266800		Cap-dispenser				$ 46.67
55	131206100		Cup-dispenser				$ 52.82
56	131468900		Screw-agitator,hwh Shldr `5/16-18x1.250				$ 11.76
57	131339600		Spacer-agitator				$ 18.79
58	131464900		Screw-pump-to Bracket		Appelez-nous	-
59	5303283052		Clip-shield		Appelez-nous	-
60	131268700		Spacer-pump		Appelez-nous	-
61	131268500		Bracket-pump		Appelez-nous	-
62	131420300		Screw-shield, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	131351500		Shield-pump		Appelez-nous	-
64	5303283072		Screw, Pump/brk/shield				$ 9.12
*25161	5303212877		Insert-spring Adj				$ 18.38
45A	131268800		Hose-drain		Appelez-nous	-
45B	131462500		Clip-drain Hose (not Illustrated)				$ 52.66

    View Diagram in Separate Window       Print Part List
