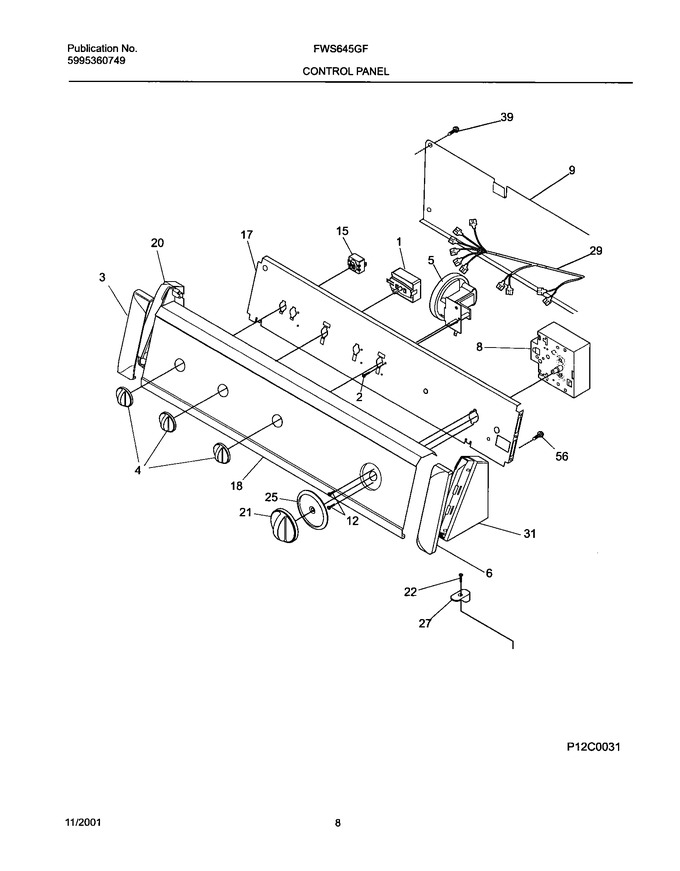

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131122612		Cover-end Cap, Almond, Lh		Appelez-nous	-
4	131141106		Knob-rotary-almond		Appelez-nous	-
6	131122602		Cover-end Cap, Almond, Rh		Appelez-nous	-
9	131141701		Backsheet-console		Appelez-nous	-
12	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131580006		Bracket-control		Appelez-nous	-
18	131684600		Panel-control Almd		Appelez-nous	-
20	131122712		End Cap, Almond, Lh		Appelez-nous	-
21	131592003		Knob-timer Almd		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592104		Dial-timer Almd		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131794300		Harness-washer Wiring		Appelez-nous	-
31	131122702		End Cap, Almond, Rh		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
F1	131120400		Switch - Speed		Appelez-nous	-
F15	131081200		Switch-temperature		Appelez-nous	-
F5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
F8	131581600		Timer				$ 702.15
NI	131507700		Spacer Pad		Appelez-nous	-
