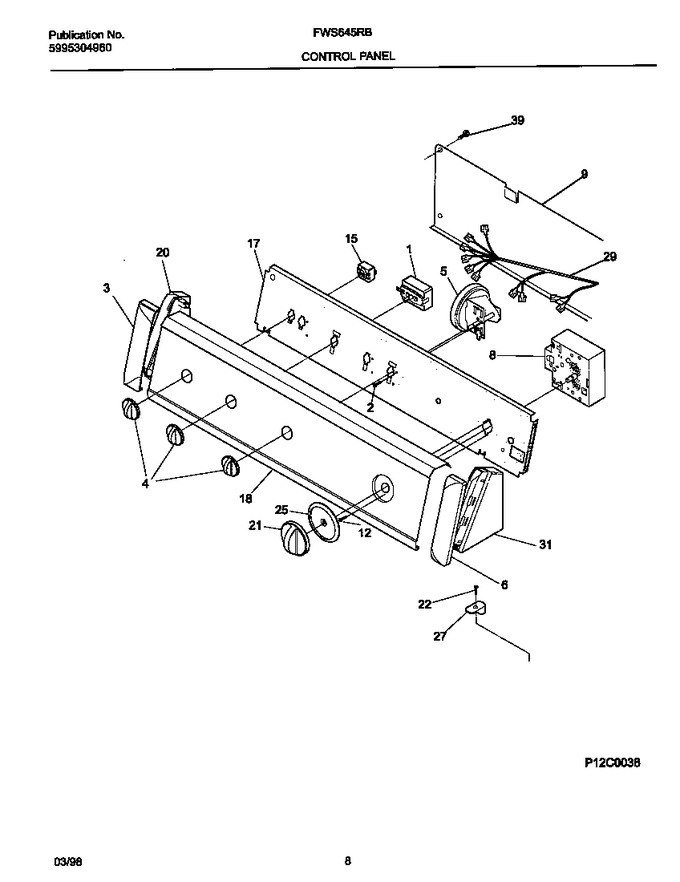

SELECT A DIAGRAM

01 - Cover


02 - Cabinet/top


03 - Motor/tub


04 - Transmission


05 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131120400		Switch - Speed		Appelez-nous	-
2	073325-000		Scr/sn8-18x.375 Comb Pnhd Ab		Appelez-nous	-
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141101		Knob-rotary, White/blue		Appelez-nous	-
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	131581600		Timer				$ 702.15
9	131141701		Backsheet-console		Appelez-nous	-
12	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
15	131081200		Switch-temperature		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	131591500		Panel-control				$ 59.36
20	131122711		End Cap,white ,lh				$ 58.38
21	131592001		Knob-timer				$ 45.57
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592101		Dial-timer		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131654200		Harness-main		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
