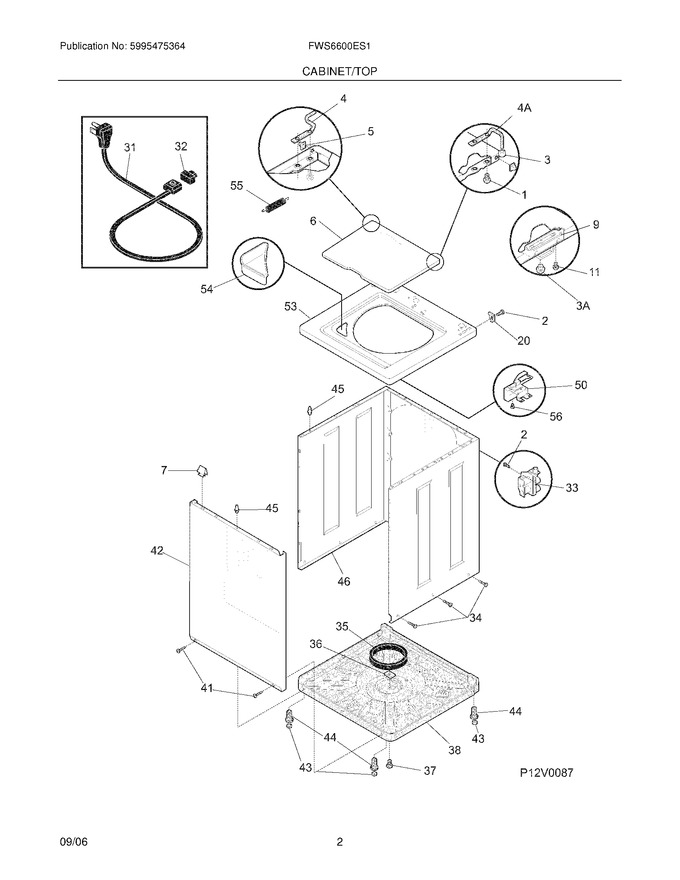

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134203900		Screw,pan Hd Phillips ,6-32 X 0.337 ,dog Point				$ 10.85
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
3	131433300		Bumper,lid Hinge				$ 13.18
4	131385910		Hinge-bar,lh				$ 53.67
5	5303208743		Grommet,hinge				$ 5.63
6	131374401		Lid-white				$ 112.37
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	131390000		Lid Strike				$ 55.19
11	3204368		Screw,lid Strike Mtg ,6-20b X 0.375				$ 13.01
20	5303208751		Hinge,top Panel ,cabinet Rear				$ 33.50
32	5303209428		Bushing,power Cord				$ 17.01
34	131205500		Screw,cab Body ,1/4-14 X 0.625 ,side-to-base				$ 13.46
35	5308002385		Snubber Ring				$ 54.86
36	3204380		Shipping Block				$ 12.29
37	131658900		Screw,shipping ,1/4-20 X 1.001 ,yellow ,unit Base,thread Forming				$ 6.77
38	134773500		Base Assembly				$ 214.41
41	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
42	131104303		Panel - Front - White				$ 309.70
43	131422100		Pad-leveling Leg				$ 17.59
44	134548800		Screw,leveling Leg ,with Pad   (Replaces: 5303309673)			Immediately	$ 30.20
45	131346400		Pin,panel Locator				$ 12.44
46	134046600		Cabinet Assy,white ,back And Sides				$ 383.99
53	131452692		Panel,white ,top				$ 198.77
54	5303208778		Dispenser-bleach				$ 51.71
55	134890500		Spring,lid Assist   (Replaces: 5303212876)				$ 19.85
56	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
3A	134075500		Bumper,lid ,front				$ 17.35
4A	131374220		Hinge Bar R.h.				$ 42.30
F31	5304505407		Power Cord,electric Svce   (Replaces: 134501000)				$ 88.20
F33	134211400		Valve,water ,115 V			Immediately	$ 103.38
F50	ES1800		Lock,lid ,w/ext Switch   (Replaces: 134101800)			Immediately	$ 61.20
