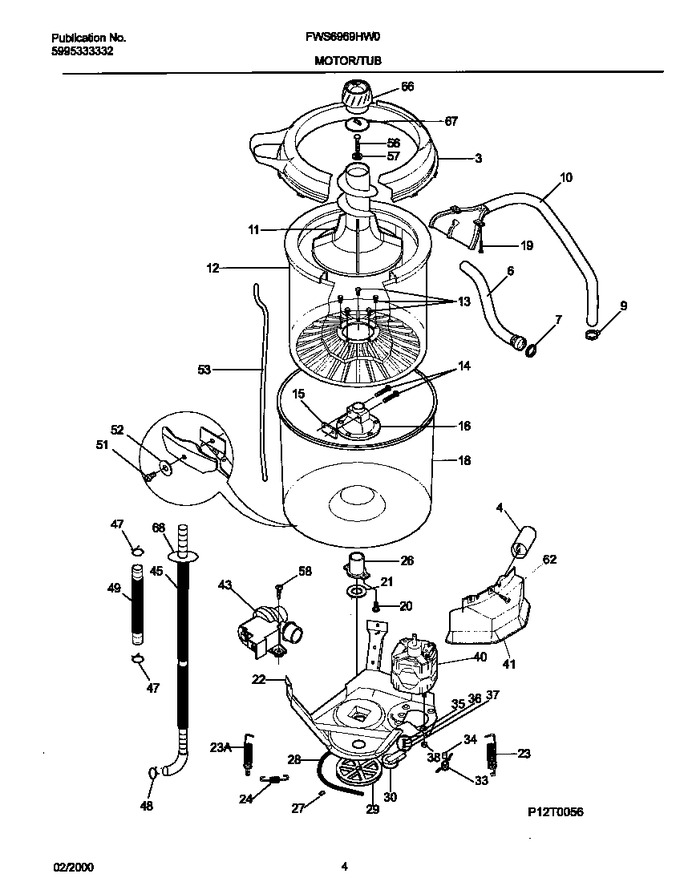

03 - P12t0056 Wshr Mtr,hose
04 - P12m0010 Transmission
05 - P12c0009 Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 131551103 | Cover-splash Tub (Replaces: 131551100) |
|
$ 206.72 | |||||
| 4 | 131212301 | Capacitor |
|
Immediately | $ 10.63 | ||||
| 6 | 3804FF | Hose-inlet (Replaces: 5303271009) |
|
Immediately | $ 16.80 | ||||
| 7 | 5303161296 | Washer-inlet Hose |
|
Immediately | $ 2,372.96 | ||||
| 9 | 5304488479 | Clamp (Replaces: 5303304824) |
|
Immediately | $ 32.09 | ||||
| 10 | 131726300 | Hose And Nozzle |
|
- | |||||
| 11 | 131605901 | Assy-agitator-dual Action |
|
Immediately | $ 186.73 | ||||
| 12 | 131221300 | Tub-spin |
|
- | |||||
| 13 | 137546400 | Screw-trunnion,unc2ax.625 `.312-18 ,(5) (Replaces: 5303283293) |
|
$ 28.35 | |||||
| 14 | 137539500 | Screw-lockplate, Hx, .312-18 X .1.625 (Replaces: 131192800) |
|
$ 20.24 | |||||
| 15 | 137107000 | Lockplate (Replaces: 5308001923) |
|
Immediately | $ 26.94 | ||||
| 16 | 131545101 | Trunnion |
|
$ 162.23 | |||||
| 18 | 131557201 | Tub-splash, W/air Dome, Brng |
|
$ 294.91 | |||||
| 19 | 131205300 | Screw-door,10-16x.75 |
|
Immediately | $ 12.10 | ||||
| 20 | 3205150 | Screw-tub Bearing, Pph B St/z, 8-12 X 0.750 |
|
$ 3.55 | |||||
| 21 | 5308002401 | Washer, Spin Bearing, Upper |
|
Immediately | $ 16.00 | ||||
| 22 | 131373610 | Leg & Dome Assy |
|
$ 313.43 | |||||
| 23 | 134885900 | Spring-vertical (Replaces: 5303208860) |
|
$ 21.27 | |||||
| 23 | 134886600 | Spring-vertical (short) (Replaces: 5303208858) |
|
Immediately | $ 37.57 | ||||
| 24 | 131373900 | Spring-horizontal |
|
$ 41.30 | |||||
| 26 | 3204405 | Bearing-outer Tub |
|
Immediately | $ 97.81 | ||||
| 27 | 5303304825 | Screw-set, Hhd Cup Pt, 5/16-18 X .85, Pulley, Transm. |
|
- | |||||
| 28 | 134511600 | Belt-washer (Replaces: 131686100) |
|
Immediately | $ 28.41 | ||||
| 29 | 131498300 | Pulley-transmission |
|
- | |||||
| 30 | 131862900 | Asmy-vaw Idler Arm |
|
$ 28.25 | |||||
| 33 | 3204425 | Spring Torsion |
|
$ 45.09 | |||||
| 34 | 3204426 | Sleeve-idler |
|
$ 9.35 | |||||
| 35 | 3161433 | Ring-retaining |
|
$ 18.79 | |||||
| 36 | 5303261031 | Washer-pivot Shaft |
|
$ 12.71 | |||||
| 37 | 5303161306 | Washer-spring |
|
$ 12.49 | |||||
| 38 | 5303318708 | Nut-motor |
|
$ 5.57 | |||||
| 40 | 131760000 | Asmy-mtr/pulley 1sp 3/4hp Ge |
|
- | |||||
| 41 | 131513300 | Shield-motor |
|
- | |||||
| 43 | 137221600 | Asmy-pump (Replaces: 131724000) |
|
Immediately | $ 189.21 | ||||
| 45 | 131461200 | Hose-drain,90 Inch |
|
$ 66.94 | |||||
| 47 | 5303294768 | Clamp-hose To Tub |
|
- | |||||
| 48 | 5304536802 | Clamp-pump (Replaces: 131306234) |
|
Immediately | $ 4.01 | ||||
| 49 | 131494800 | Hose-pump To Tub |
|
Immediately | $ 72.30 | ||||
| 51 | 131659000 | Screw-leg, Hwh Typ 23, 5/16-18 X .875 |
|
- | |||||
| 52 | 131315800 | Washer-leg, Idx.040, 1.25 Odx.335 |
|
- | |||||
| 53 | 5304401845 | Tube, Pressure (Replaces: 5300771996) |
|
$ 58.12 | |||||
| 56 | 131468900 | Screw-agitator,hwh Shldr `5/16-18x1.250 |
|
$ 11.76 | |||||
| 57 | 131339600 | Spacer-agitator |
|
$ 18.79 | |||||
| 58 | 131464900 | Screw-pump-to Bracket |
|
- | |||||
| 62 | 131302800 | Screw-front Pnl,comb Th Ab ,10-16 X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 66 | 131624500 | Cup/cap Assy |
|
$ 96.08 | |||||
| 67 | 131606210 | Cap Assembly |
|
$ 60.95 | |||||
| 68 | 131707800 | Ring-drain Hose |
|
$ 45.25 | |||||
| *77441 | 131462500 | Clip-drain Hose |
|
$ 52.66 | |||||
| *77442 | 131506500 | Clip-drain Hose |
|
$ 13.76 | |||||
| *77443 | 5303212877 | Insert-spring Adj |
|
$ 18.38 | |||||
| *77444 | 5303309503 | Clip-backsheet |
|
$ 7.09 |
