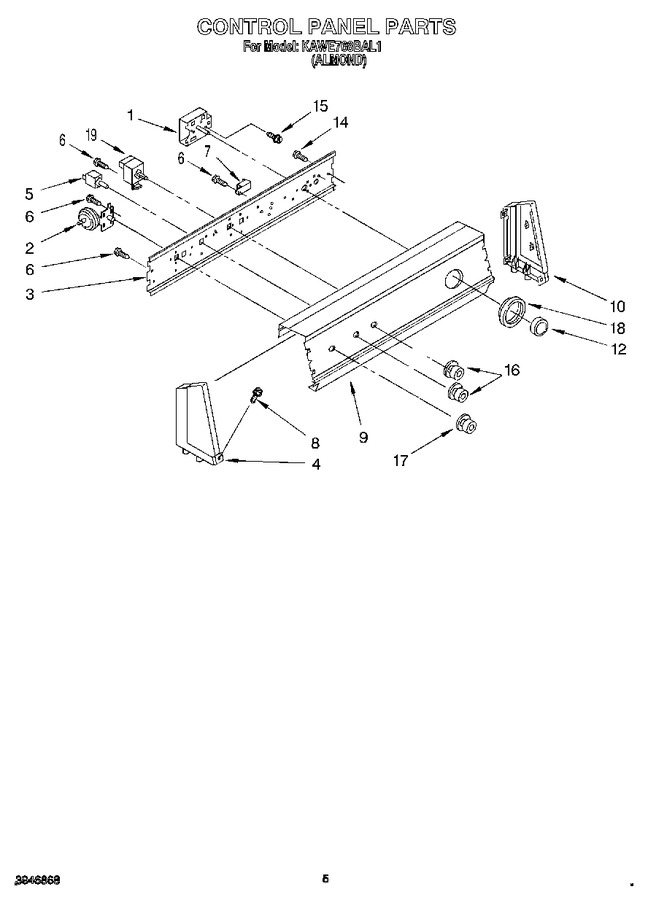

03 - Control Panel


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Agitator, Basket And Tub


06 - Miscellaneous


07 - Machine Base


08 - Wiring Harness


09 - Gearcase


10 - Brake And Drive Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3946456		Timer, Control 60 Hz. (motor Not Serviced)		Appelez-nous	-
2	3356464		Switch, Water Level				$ 97.70
3	WP3948608		Bracket, Control   (Replaces: 3360936)				$ 104.57
4	3360572		Cap, End (l.h.)		Appelez-nous	-
5	661536		Switch, Water Temperature		Appelez-nous	-
6	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
8	WP388326		Screw, Console   (Replaces: 3353145)				$ 7.30
9	3362002		Panel, Console		Appelez-nous	-
10	3360569		Cap, End (r.h.)		Appelez-nous	-
12	3349235		Knob, Timer		Appelez-nous	-
14	WP3351614		Screw, 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
15	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
16	3362610		Knob, Water Temperature		Appelez-nous	-
17	3362610		Knob, Water Level		Appelez-nous	-
18	3946303		Dial, Timer		Appelez-nous	-
19	3354281		Switch, Rotary		Appelez-nous	-
