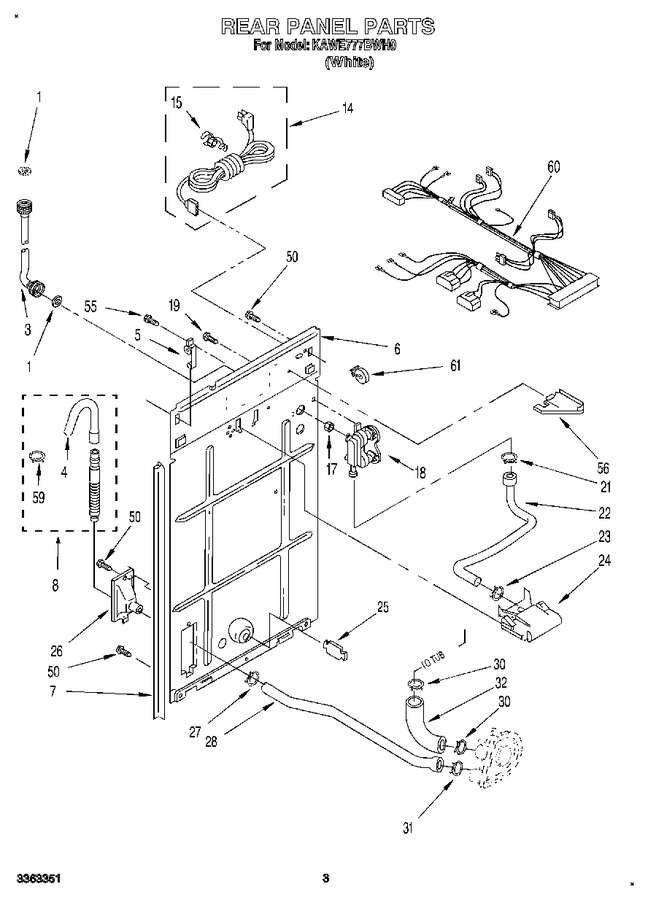

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 6.93 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (Replaces: 661582) |
|
Immediately | $ 21.68 | ||||
| 4 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 83.88 | |||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285664 | Hose, Drain (4`- 8``) (Replaces: 661575) |
|
Immediately | $ 33.20 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 54.81 | ||||
| 8 | 285666 | Hose, Drain (9`- 9``) (not Included) (Replaces: 661577) |
|
Immediately | $ 56.11 | ||||
| 14 | 3360514 | Cord, Power |
|
- | |||||
| 15 | W11733005 | Strain Relief, Power Cord (Replaces: 63848) |
|
$ 11.64 | |||||
| 17 | WP96160 | Screen, Filter (2) (Replaces: 96160) |
|
$ 10.54 | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3360392) |
|
Immediately | $ 49.57 | ||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 21 | WP596669 | (alt.) (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 21 | WP596669 | (alt.) (Replaces: 353367) |
|
Immediately | $ 7.56 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 660632) |
|
Immediately | $ 7.56 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.01 | ||||
| 26 | WPW10358149 | Connector, Drain Hose (Replaces: 3355497) |
|
Immediately | $ 43.34 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 28 | 3359816 | Hose, Pump To Drain Connector |
|
- | |||||
| 30 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 10.38 | |||||
| 31 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 10.38 | |||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 62731) |
|
Immediately | $ 24.01 | ||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 55 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 56 | 3348424 | Sheild, Suds |
|
- | |||||
| 59 | WP3357331 | Clamp, Drain Hose (Replaces: 3357331) |
|
$ 6.80 | |||||
| 60 | 3362568 | Harness, Wiring (for Detail See Wiring Harness Parts Page) Also See Clips. |
|
- | |||||
| 61 | 8559320 | Clip, Harness (Replaces: 3352501) |
|
$ 41.27 |
