Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3946476 Timer, Control 60 Hz (motor Not Serviced)   (Replaces: 3946476) Special Order $ 319.30

2 3362134 Switch, Water Level Appelez-nous -
3 WP3948608 Bracket, Control   (Replaces: 3360936) Special Order $ 104.57

4 3360570 Cap, End (l.h.) Appelez-nous -
5 661536 Switch, Water Temperature Appelez-nous -
6 WP90767 Screw, 8a X 3/8   (Replaces: 90767) In-Stock Immediately $ 7.04

7 WP694419 Buzzer, Mini   (Replaces: 694419) Special Order $ 114.90

8 WP388326 Screw, 8-18   (Replaces: 3353145) Special Order $ 7.30

9 3361994 Console, Panel Appelez-nous -
10 3360567 Cap, End (r.h.) Appelez-nous -
11 3361224 Switch, Rotary Appelez-nous -
12 3349234 Knob, Timer Appelez-nous -
14 WP3351614 Screw, Ground 10-24 X 3/8   (Replaces: 90864) In-Stock Immediately $ 6.26

15 WP356418 Screw (2)   (Replaces: 96435) Special Order $ 7.13

16 3363437 Knob, Control Appelez-nous -
17 3946301 Dial, Timer Appelez-nous -
19 WP688805 Clip, Knob   (Replaces: 688805) In-Stock Immediately $ 7.03


    View Diagram in Separate Window     Print Icon   Print Part List

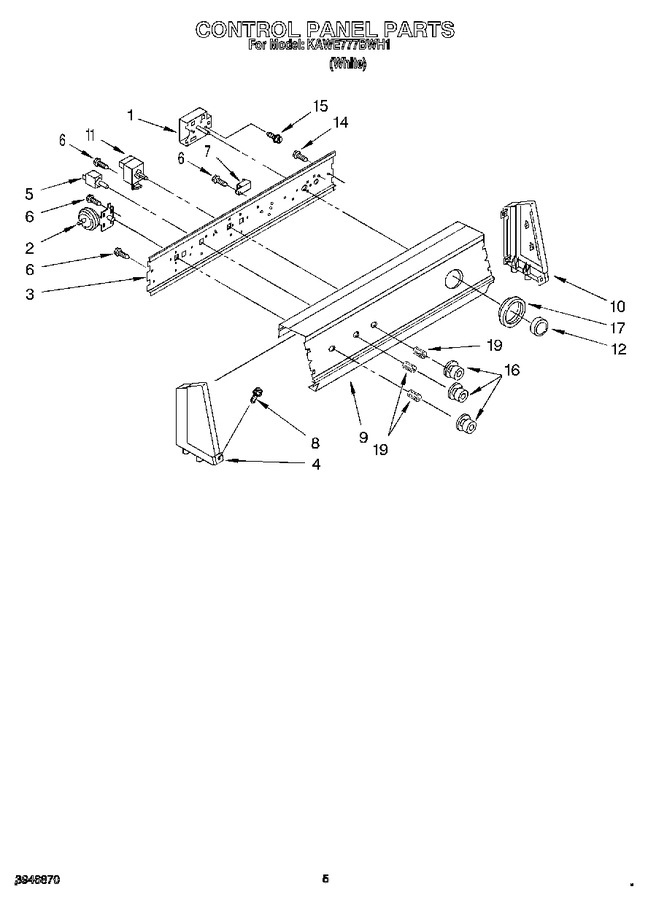

Diagram for KAWE777BWH1
