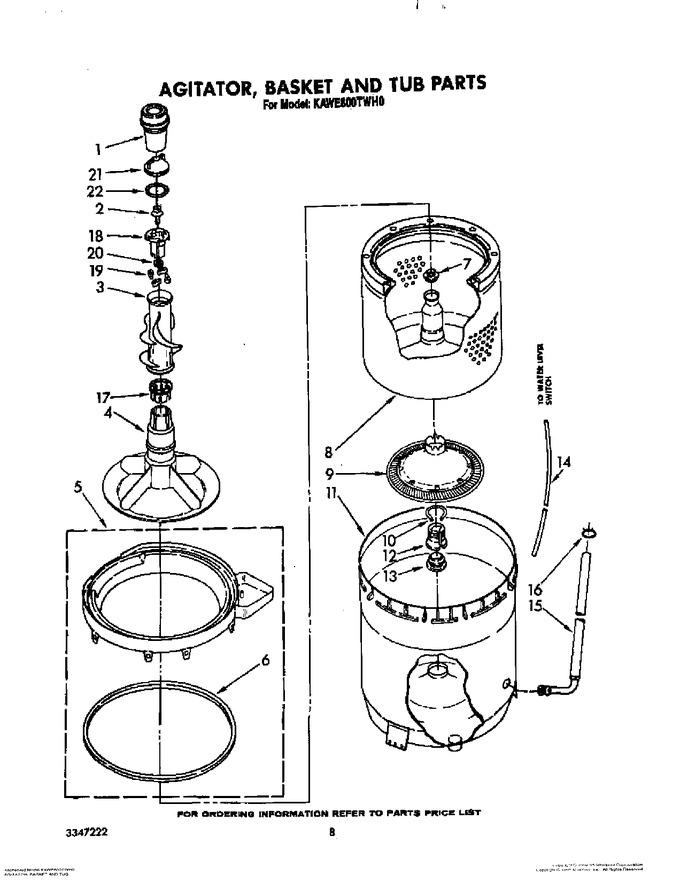

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8575076A | Dispenser, Rinse (Replaces: 389142) |
|
Immediately | $ 28.52 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | WP3348752 | Clothes Mover (Replaces: 3348916) |
|
$ 220.69 | |||||
| 4 | WP3347288 | Agitator (Replaces: 3348245) |
|
Immediately | $ 124.06 | ||||
| 5 | W10880720 | Tub Ring (Replaces: 63851) |
|
Immediately | $ 200.01 | ||||
| 6 | WP3976308 | Gasket, Tub Ring (Replaces: 63852) |
|
Immediately | $ 25.43 | ||||
| 7 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 8 | W10389328 | Basket & Balance Ring (Replaces: 3349969) |
|
$ 364.12 | |||||
| 9 | 285868 | Filter, Plate (includes Illus. 10) (Replaces: 62941) |
|
Immediately | $ 19.51 | ||||
| 10 | 62942 | Lock, Filter |
|
$ 7.59 | |||||
| 11 | 3361596 | Tub (Replaces: 388893) |
|
$ 275.91 | |||||
| 12 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 13 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.26 | ||||
| 14 | WP353244 | Hose, Pressure Switch (Replaces: 386757) |
|
Immediately | $ 53.94 | ||||
| 15 | 63323 | Hose, Bleach |
|
$ 60.00 | |||||
| 16 | WP596669 | Clamp, Hose (Replaces: 356436) |
|
Immediately | $ 7.56 | ||||
| 17 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 3.98 | ||||
| 18 | 285811 | Cam Driver (Replaces: 3347410) |
|
Immediately | $ 29.33 | ||||
| 19 | 80040 | Dog, Agitator Clutch (Replaces: 387091) |
|
Immediately | $ 3.28 | ||||
| 20 | 357574 | Seal, Agitator |
|
$ 5.70 | |||||
| 21 | WPW10074580 | Cap, Barrier (Replaces: 3347290) |
|
Immediately | $ 11.16 | ||||
| 22 | WPW10072840 | Seal-inner Cap (Replaces: 3348855) |
|
Immediately | $ 7.85 |
