SELECT A DIAGRAM

01 - Cover


02 - P12v0019 Wshr Cab,top


03 - P12t0056 Wshr Mtr,hose


04 - P12m0010 Transmission

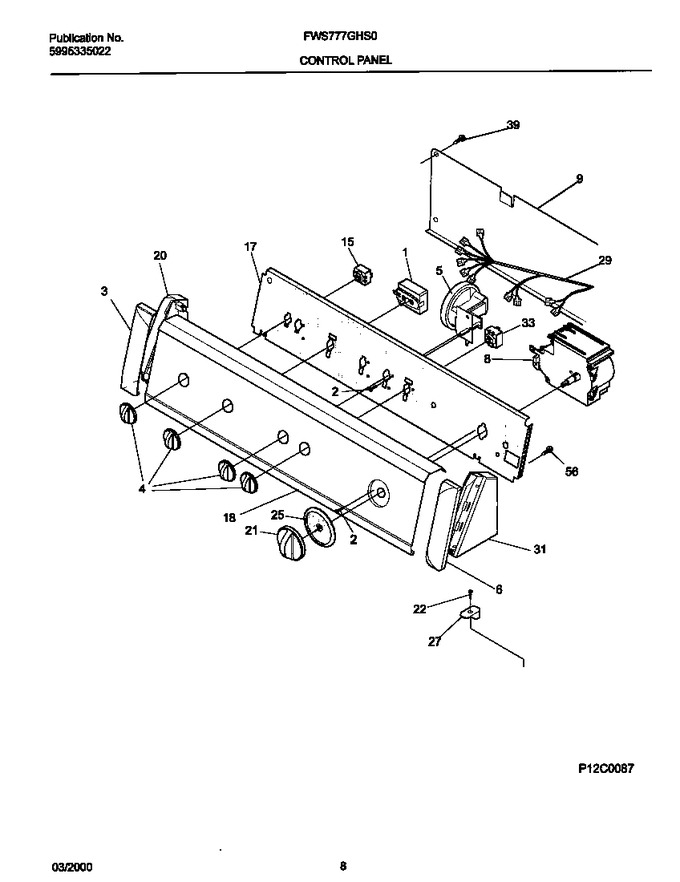

05 - P12c0087 Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131120400		Switch - Speed		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob-rotary,white/gray				$ 33.34
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	131856400		Timer-elec Y				$ 352.80
9	131141701		Backsheet-console		Appelez-nous	-
15	131081200		Switch-temperature		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	131945500		Trimplate Fda7yrsf		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131592001		Knob-timer				$ 45.57
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592103		Dial-timer				$ 50.08
27	131197000		Clip-control Panel				$ 13.62
29	131947500		Harn-y-rot Sp/temp/3op		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
33	131047000		Switch-temperature		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
*46845	131507700		Spacer Pad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
