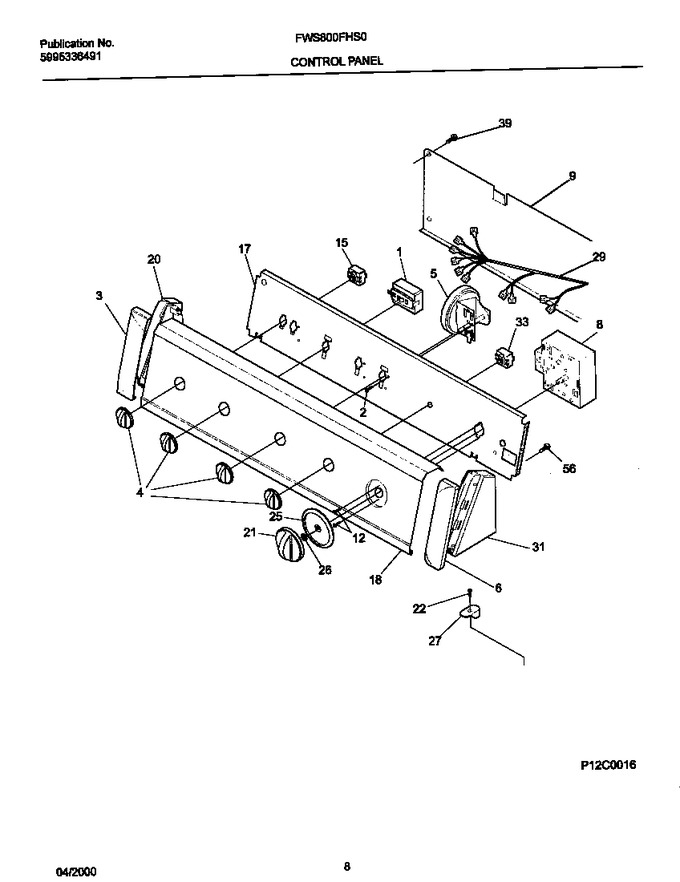

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131893500		Switch-spd 4 Pos Rot-3spd				$ 82.37
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131941600		Knob-rot Wht/lt Gray Ind				$ 32.29
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	131897600		Timer-elec Z		Appelez-nous	-
9	131141730		Backsheet		Appelez-nous	-
12	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
15	131081200		Switch-temperature		Appelez-nous	-
17	131728900		Bracket-control		Appelez-nous	-
18	131941400		Trimplate Fda9zrsf-2		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131941800		Knob-timer-white/lt Gray		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131941700		Pointer-timer Wht/lt Gray Ind		Appelez-nous	-
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131898800		Harn-z-rot Sp/temp/opt 3spd		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
33	131047000		Switch-temperature		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
*66487	131507700		Spacer Pad		Appelez-nous	-
