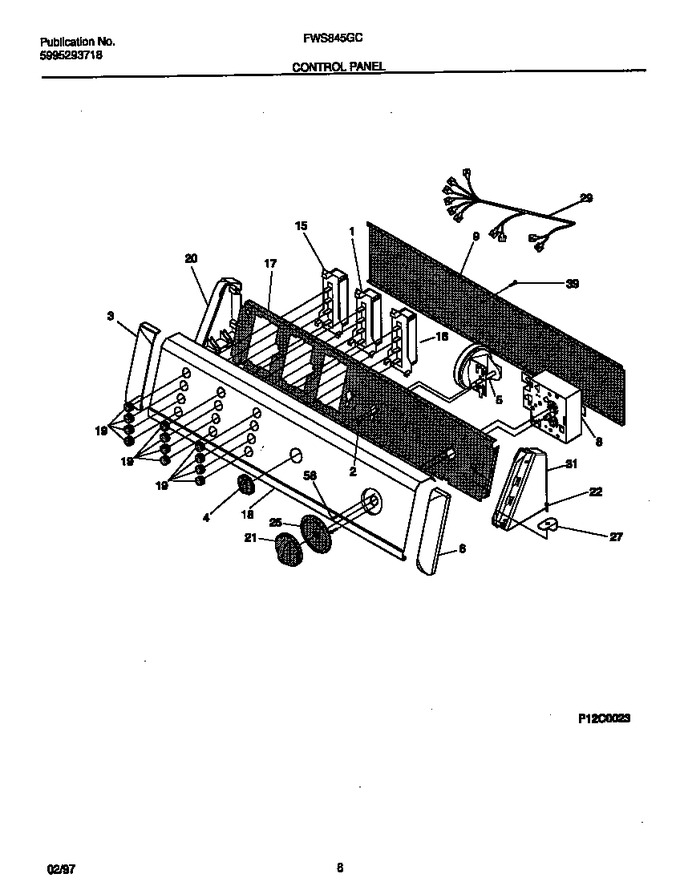

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131118100		Switch-speed		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob-rotary,white/gray				$ 33.34
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	131581602		Timer		Appelez-nous	-
9	131141701		Backsheet-console		Appelez-nous	-
12	131243800		Screw/sn 8-32 X .375 Comb Pnhd Cup				$ 10.46
15	131047600		Switch-temperature		Appelez-nous	-
16	131169100		Switch-option, 4 Button		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	131591300		Panel-control		Appelez-nous	-
19	131141201		Button-switch, White, (8)		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131592001		Knob-timer				$ 45.57
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592103		Dial-timer				$ 50.08
27	131197000		Clip-control Panel				$ 13.62
29	131589400		Harness-main		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
