SELECT A DIAGRAM

02 - Cabinet, Top Panel, Base


03 - Tubs, Hoses, Motor


04 - Transmission


05 - Console & Controls

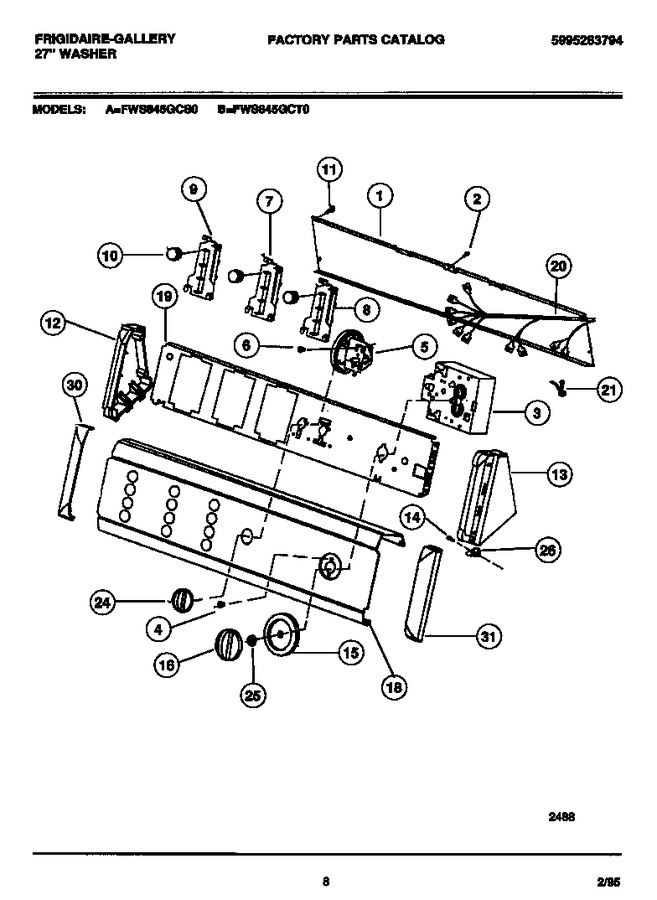

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131141701		Backsheet		Appelez-nous	-
2	131243700		Screw (4)				$ 3.36
3	131238300		Timer		Appelez-nous	-
4	3161188		Screw		Appelez-nous	-
5	131237300		Switch-pressure		Appelez-nous	-
6	131168200		Screw			Immediately	$ 14.18
7	131118100		Switch-speed		Appelez-nous	-
8	131169100		Switch-option		Appelez-nous	-
9	131047600		Switch-temperature		Appelez-nous	-
10	131141203		Pushbutton-almond (12)		Appelez-nous	-
11	131205100		Screw (4)			Immediately	$ 14.18
12	131122712		End Cap Lh-almond		Appelez-nous	-
13	131122702		End Cap-rh-almond		Appelez-nous	-
14	5303289526		Screw		Appelez-nous	-
15	131140704		Dial-almond		Appelez-nous	-
16	131140603		Knob-timer-almond		Appelez-nous	-
18	131380100		Panel-control-almond		Appelez-nous	-
19	131297303		Bracket-control		Appelez-nous	-
20	131169000		Harness		Appelez-nous	-
21	131243800		Screw - Grd - Top Panel				$ 10.46
24	131141106		Knob-rotary-almond		Appelez-nous	-
25	5308015493		Spacer-timer Shaft				$ 14.36
26	131197000		Clip				$ 13.62
30	131122612		Cover-cap-lh-almd		Appelez-nous	-
31	131122602		Cover-cap-rh-almd		Appelez-nous	-
*83402	131168200		Screw-grd Cabinet			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
