01 - Cabinet Top And Control Hood Rear Panel

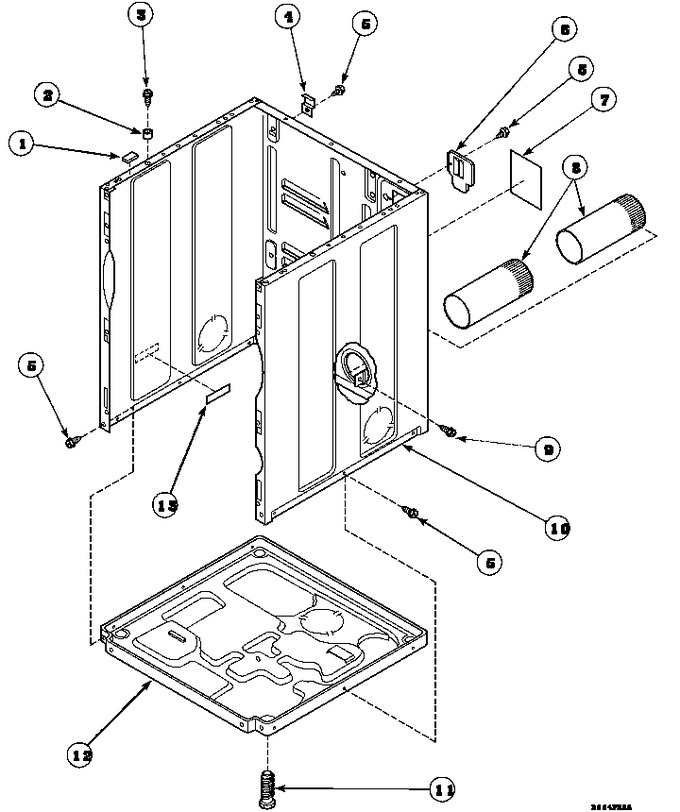

02 - Cabinet, Exhaust Duct And Base


03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


04 - Graphic Panel, Control Hood And Controls


05 - Heater Box Assy Originally On Elec Dryer


06 - Heater Box Assy Replacement


07 - Loading Door With Drying Rack


08 - Lower Access Panel, Front Panel And Seal


09 - Motor, Exhaust Fan And Belt


10 - Page 14


11 - Power Cords


12 - Rear Blkhd,felt Seal, Roller & Term Blk


13 - Terminals


14 - Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
2	56079		Locater, Panel			Immediately	$ 6.95
3	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	D510136		Hinge, Top   (Replaces: 500003)				$ 6.95
5	WP27001200		Screw   (Replaces: 33562)				$ 6.91
6	500114		Panel, Access Cover		Appelez-nous	-
7	501289		Sticker		Appelez-nous	-
8	500064		Exhaust Duct		Appelez-nous	-
9	WP3390631		Screw, 10b-16 X .34   (Replaces: 501668)				$ 7.04
10	500001P		Cabinet		Appelez-nous	-
11	Y500101		Leg, Leveling (plastic)				$ 25.84
12	D514245		Base, Dryer   (Replaces: 500070)				$ 101.22
13	61294		Sticker		Appelez-nous	-
NI	Sub. To D510502W		Kit,flex Vent-display   (Replaces: 521P3)		Appelez-nous	-
NI	528P3		Side Vent Kit				$ 133.36
