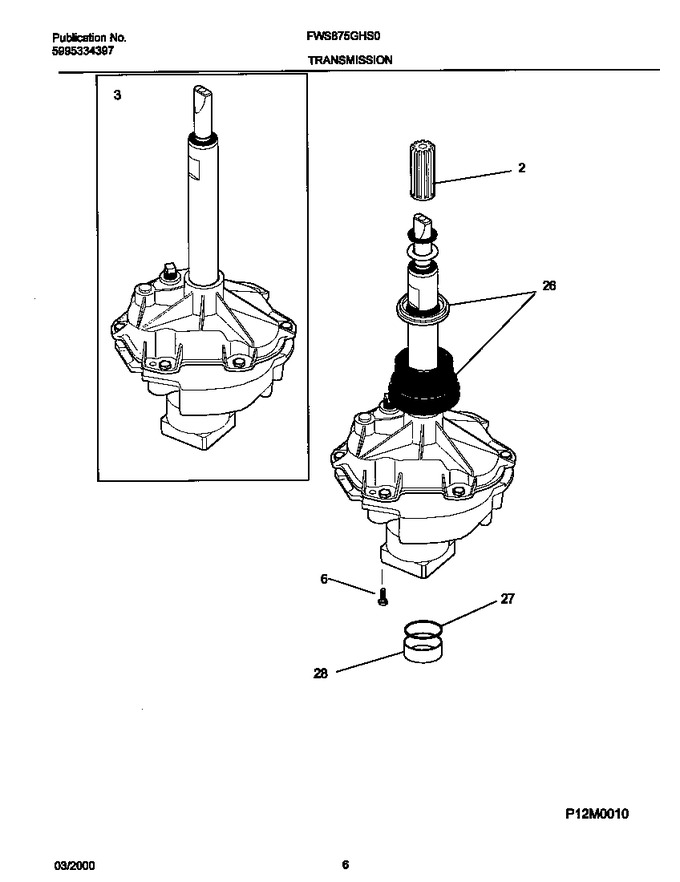

04 - P12m0010 Transmission
05 - P12c0016 Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131475100 | Hub-drive |
|
- | |||||
| 3 | 131878402 | Asmy-trans H+ Daa Helical Gear |
|
- | |||||
| 6 | 131346600 | Screw |
|
- | |||||
| 26 | 5303279394 | Seal-tub |
|
$ 85.72 | |||||
| 27 | 131784300 | Washer-trans-brg Block-koyo |
|
- | |||||
| 28 | 131784400 | Spacer-trans Brg Block-koyo |
|
$ 48.58 |
