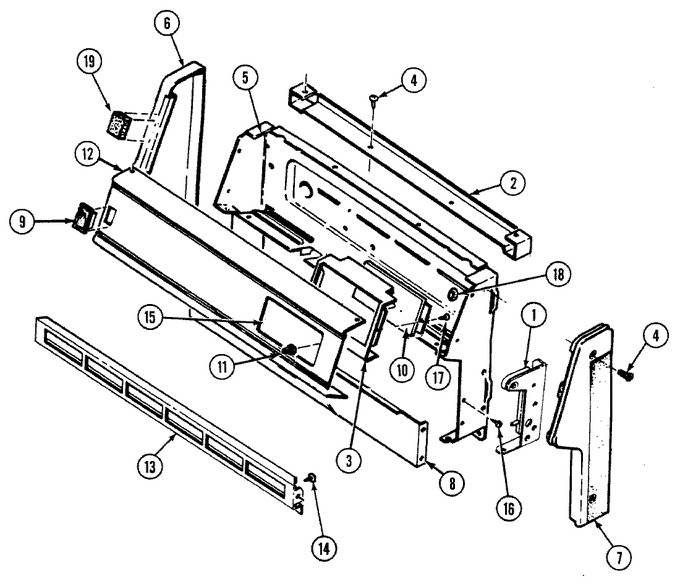

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/oven
02 - Control Panel
03 - Door/drawer
04 - Gas Controls (electronic)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3418A088-34 | Hinge, Main Top (lt) |
|
- | |||||
| 1 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 1 | 8114P348-60 | Cover, Hinge Support | 01 |
|
- | ||||
| 2 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 3 | 3801F249-45 | Bracket, Clock Support | 01 |
|
- | ||||
| 4 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 6 | 7726P050-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 7 | 7726P046-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 8 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 9 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 10 | 7902P108-60 | Glass, Clock | 01 |
|
- | ||||
| 10 | 7602P085-60 | Clock | 01 |
|
- | ||||
| 11 | 7711P466-60 | Knob, Clock | 01 |
|
$ 14.72 | ||||
| 12 | 7703P279-60 | Panel, Control | 01 |
|
- | ||||
| 13 | 3608F042-09 | Trim, Vent (blk) | 01 |
|
- | ||||
| 14 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 01 |
|
$ 11.92 | ||||
| 15 | 7201P056-60 | Gasket | 01 |
|
- | ||||
| 16 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 17 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 18 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 19 | 8113P011-60 | Manual, Use & Care | 01 |
|
- | ||||
| 19 | 5180D139-60 | Harness, Ctrl Pnl | 01 |
|
- | ||||
| 19 | 8010P085-60 | Spacer, Rubber | 01 |
|
- |
