SELECT A DIAGRAM

01 - Cover


03 - Cabinet/top


05 - Motor/tub


07 - Transmission

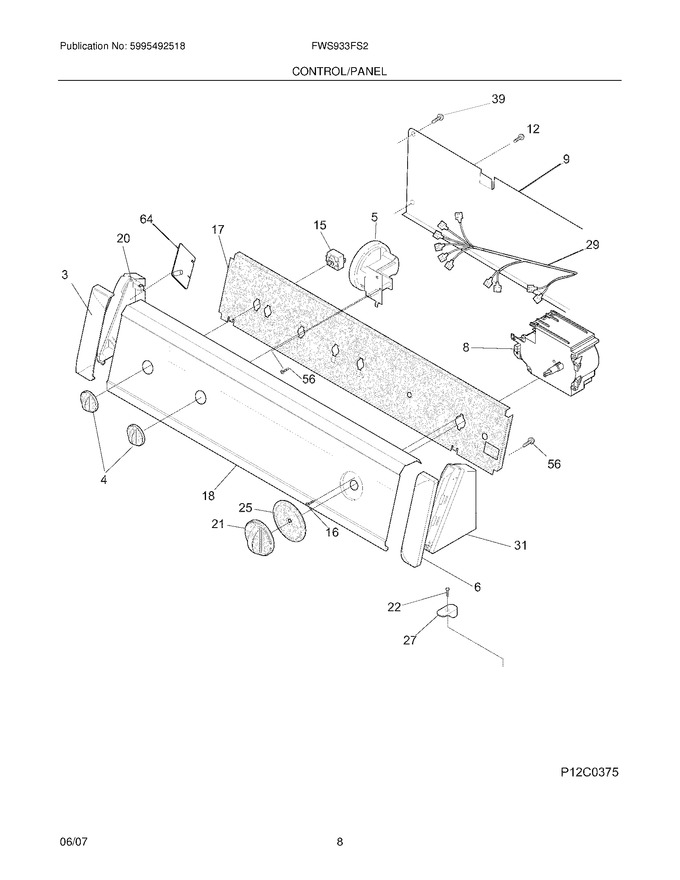

09 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob,rotary ,white/dk Gray				$ 33.34
5	134411600		Switch,pressure ,3 Position				$ 138.92
6	131122601		Cover-end Cap, White, Rh				$ 47.20
9	134088700		Panel,console Back		Appelez-nous	-
12	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
16	131168200		Screw,pan Head ,10.16ab X 0.375   (Replaces: 131477001)			Immediately	$ 14.18
17	134487900		Bracket,control Mtg.		Appelez-nous	-
18	134870400		Panel,trimplate ,console Front				$ 96.60
20	131122714		End Cap,white ,lh				$ 32.32
21	131592001		Knob-timer White				$ 45.57
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	131592105		Pointer,timer Knob ,white ,dark Gray Ind.				$ 65.05
27	131197000		Clip-console Mtg				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F15	134403500		Switch,temp Selector ,3 Position				$ 15.80
F29	134895200		Wiring Harness		Appelez-nous	-
F64	134810610		Control Board,temperature ,atc				$ 145.32
F64	134205400		Screw,pan Head ,6-19 X 0.500 ,type P		Appelez-nous	-
F8	131758600		Timer-washer			Immediately	$ 352.01
NI	134756600		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
