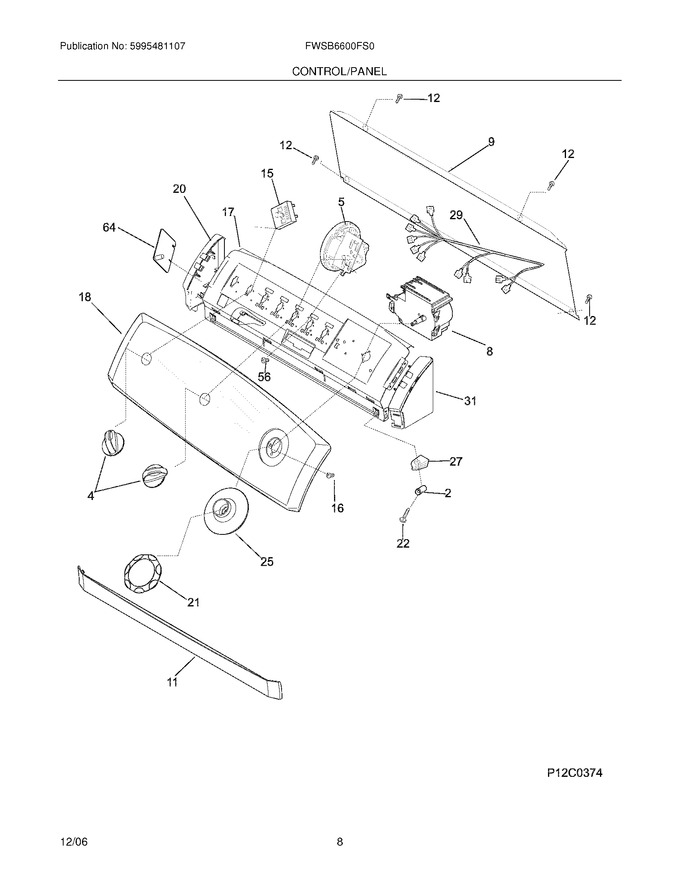

SELECT A DIAGRAM

01 - Cover


03 - Cabinet/top


05 - Motor/tub


07 - Transmission


09 - Control/panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134844410		Knob,rotary ,white   (Replaces: 134034910)			Immediately	$ 57.36
5	134411600		Switch,pressure ,3 Position				$ 138.92
9	131992910		Panel,backsheet ,console				$ 64.73
11	134019900		Closure,console Trim ,white ,front				$ 66.68
12	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
16	131168200		Screw,pan Head ,10.16ab X 0.375   (Replaces: 131477001)			Immediately	$ 14.18
17	131993040		Bracket,control Mtg.				$ 46.83
18	134858100		Panel,trimplate ,console Front		Appelez-nous	-
20	134019610		End Cap,white ,lh				$ 46.31
21	134035200		Knob,timer ,white ,assy				$ 41.27
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	134035100		Pointer,timer Knob ,white ,dark Gray Ind.				$ 35.22
27	131197000		Clip-console Mtg				$ 13.62
31	134019600		End Cap,white ,rh				$ 46.10
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F15	134769200		Switch,temp Selector ,4 Posn Rotary		Appelez-nous	-
F29	134762400		Wiring Harness		Appelez-nous	-
F64	134810600		Control Board,temperature ,atc		Appelez-nous	-
F8	134233900		Timer,washer ,4-off		Appelez-nous	-
NI	134756700		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
