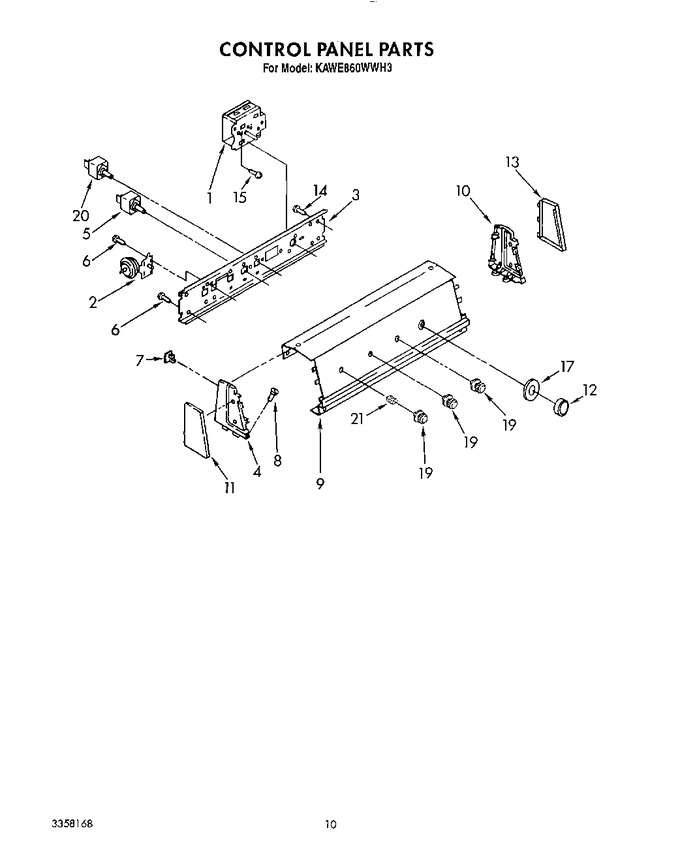

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3356365CP | Timer, Control 60 Hz. (motor Not Serviced) (Replaces: 3356365) |
|
- | |||||
| 2 | 3350764 | Switch, Water Level |
|
- | |||||
| 3 | 3349232 | Bracket, Control |
|
- | |||||
| 4 | 3354640 | Cap, End (l.h.) |
|
- | |||||
| 5 | 661536 | Switch, Water Temperature |
|
- | |||||
| 5 | 3348354 | (alt.) |
|
- | |||||
| 5 | 3349590 | (alt.) |
|
- | |||||
| 6 | WP90767 | Screw, No.8 Mounting (Replaces: 3348629) |
|
Immediately | $ 7.04 | ||||
| 7 | 689559 | Nut, Push-in |
|
- | |||||
| 8 | WP388326 | Screw, 8-18 (2) (Replaces: 64211) |
|
$ 7.30 | |||||
| 9 | 3353408 | Console, Panel |
|
- | |||||
| 10 | 3354646 | Cap, End (r.h.) |
|
- | |||||
| 11 | 3353685 | Trim, Endcap (l.h.) |
|
- | |||||
| 12 | 3349233 | Knob, Timer |
|
- | |||||
| 13 | 3353678 | Trim, Endcap (r.h.) |
|
- | |||||
| 14 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 15 | WP356418 | Screw (2) (Replaces: 96435) |
|
$ 7.13 | |||||
| 17 | 3349243 | Dial, Timer |
|
- | |||||
| 19 | 3351726 | Knob, Control |
|
- | |||||
| 20 | WP3405156 | Switch, Rotary (Replaces: 3349591) |
|
$ 130.96 | |||||
| 21 | WP688805 | Clip, Knob (Replaces: 688805) |
|
Immediately | $ 7.03 |
