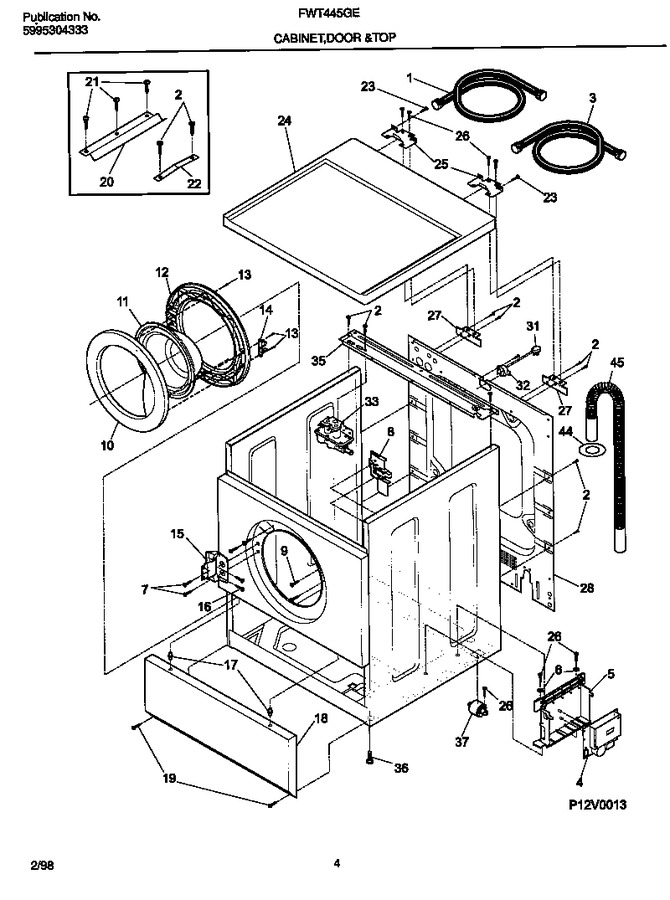

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303912532 | Hose-inlet Cold (Replaces: 131279600) |
|
$ 88.20 | |||||
| 2 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 3 | 131279601 | Hose-inlet Hot |
|
- | |||||
| 4 | 131690700 | Control-speed |
|
- | |||||
| 5 | 131268900 | Box-control |
|
$ 75.08 | |||||
| 6 | 131304300 | Washer .21x.71x.06`.21x.71x.06 |
|
- | |||||
| 8 | 131269400 | Lock-door Assy |
|
- | |||||
| 9 | 131303300 | Screw-lock, Ph Ab, 10-16 X .50 |
|
- | |||||
| 10 | 131278700 | Door-outer |
|
$ 217.35 | |||||
| 11 | 131278800 | Glass-door |
|
$ 209.27 | |||||
| 12 | 134426500 | Door-inner (Replaces: 131278900) |
|
Immediately | $ 159.80 | ||||
| 13 | 131302901 | Screw,10-16x.75 |
|
$ 4.96 | |||||
| 14 | 131279000 | Catch-door |
|
- | |||||
| 15 | 134264600 | Hinge-door (Replaces: 131269300) |
|
$ 63.96 | |||||
| 16 | 131205300 | Screw-door,10-16x.75 |
|
Immediately | $ 12.10 | ||||
| 17 | 131346400 | Pin, Locating |
|
$ 12.44 | |||||
| 18 | 131279300 | Panel-service,white |
|
$ 231.95 | |||||
| 19 | 218362501 | Screw-panel,hwhd Ab ,8-18x1.125 (Replaces: 131358400) |
|
$ 12.05 | |||||
| 20 | 131460900 | Bracket-top Front |
|
$ 48.56 | |||||
| 21 | 131243700 | Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive |
|
$ 3.36 | |||||
| 22 | 131279500 | Retainer-spring |
|
$ 30.43 | |||||
| 23 | 131243800 | Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv |
|
$ 10.46 | |||||
| 24 | 131677308 | Panel-top |
|
- | |||||
| 25 | 131668200 | Bracket-top Pnl |
|
$ 40.48 | |||||
| 26 | 134178901 | Screw,quadrex Ph Ab ,8-18x1/2 (Replaces: 131311900) |
|
$ 14.89 | |||||
| 27 | 131461000 | Bracket-top Rear |
|
$ 29.38 | |||||
| 28 | 131686700 | Panel-back |
|
- | |||||
| 31 | 5304505407 | Cord-service (Replaces: 5303208765) |
|
$ 88.20 | |||||
| 32 | 5303209428 | Bushing-cord |
|
$ 17.01 | |||||
| 33 | 134190200 | Valve-water (Replaces: 5303207418) |
|
Immediately | $ 153.09 | ||||
| 35 | 131273900 | Back Reinforcement |
|
- | |||||
| 36 | 5303937190 | Leg,pad/nut (Replaces: 131003900) |
|
$ 65.92 | |||||
| 37 | 131304200 | Roller Assy |
|
$ 41.92 | |||||
| 44 | 131707800 | Ring-drain Hose,44 |
|
$ 45.25 | |||||
| 45 | 131461200 | Hose-drain,90 Inch |
|
$ 66.94 | |||||
| *28601 | 131396100 | Plug-hole |
|
- | |||||
| *28602 | 131445600 | Panel-top, Galvanized |
|
$ 87.04 | |||||
| *28603 | 5303937142 | Brace-shipping |
|
$ 248.43 |
