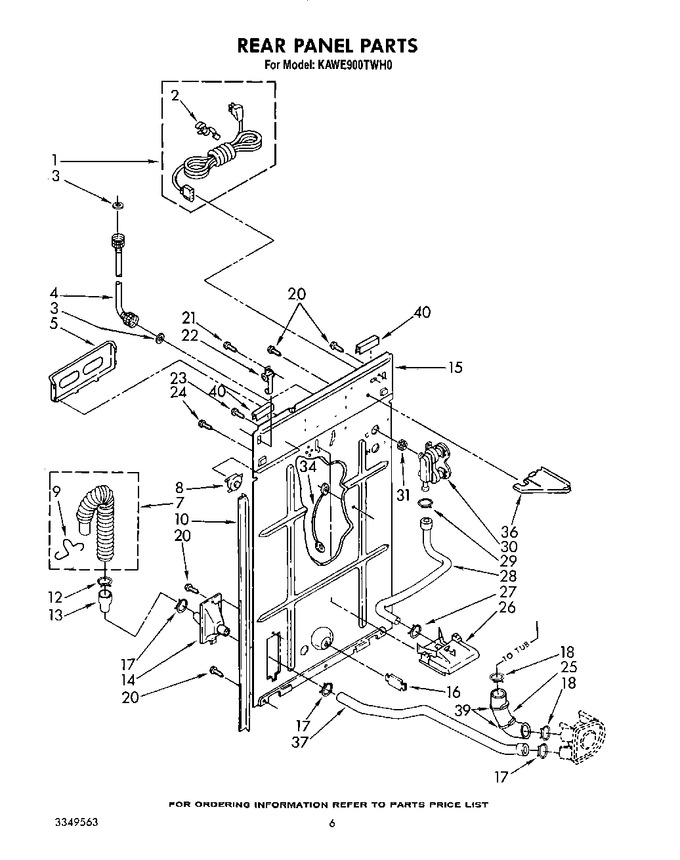

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10820044 | Cord, Power (Replaces: 62734) |
|
$ 128.46 | |||||
| 2 | W11733005 | Clip, Strain Relief (Replaces: 63848) |
|
$ 11.64 | |||||
| 3 | WP16123 | Washer, Water Inlet Hose (4) (Replaces: 16123) |
|
$ 6.93 | |||||
| 4 | WP89503 | Hose, Water (Replaces: 3349716) |
|
Immediately | $ 21.68 | ||||
| 5 | 63020 | Rack, Literature |
|
$ 30.32 | |||||
| 7 | 285664 | Hose, Corrugated Plastic Drain (5-1/2 Ft.) (Replaces: 387325) |
|
Immediately | $ 33.20 | ||||
| 7 | 285666 | Hose, Corrugated Plastic Drain (10 Ft.) (not Included) (Replaces: 388418) |
|
Immediately | $ 56.11 | ||||
| 8 | 3347694 | Speaker |
|
- | |||||
| 9 | 3350222 | Retainer, Wire |
|
$ 34.76 | |||||
| 10 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 12 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 7.03 | ||||
| 13 | WP384496 | Coupling, Hose (Replaces: 384496) |
|
$ 77.48 | |||||
| 14 | WPW10358149 | Connector, Drain (Replaces: 3349018) |
|
Immediately | $ 43.34 | ||||
| 15 | 3348430 | Panel, Rear |
|
- | |||||
| 16 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.01 | ||||
| 17 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 18 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 10.38 | |||||
| 20 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 21 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 22 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 23 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 24 | WP681414 | Screw, Ground (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 25 | 285871 | Hose, Pump To Tub (Replaces: 62731) |
|
Immediately | $ 24.01 | ||||
| 26 | WP3360977 | Vacuum Break (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 27 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 28 | WP3357328 | Hose, Vacuum Break (Replaces: 62662) |
|
Immediately | $ 22.30 | ||||
| 29 | WP596669 | Clamp, Hose (Replaces: 660632) |
|
Immediately | $ 7.56 | ||||
| 30 | 285805 | Valve, Mixing (Replaces: 3349451) |
|
Immediately | $ 49.57 | ||||
| 31 | WP96160 | Screen, Filter (Replaces: 96160) |
|
$ 10.54 | |||||
| 34 | 364089 | Wire, Ground |
|
- | |||||
| 36 | 3348424 | Sheild, Suds |
|
- | |||||
| 37 | WP3348552 | Hose, Pump To Drain Connector (Replaces: 3348552) |
|
$ 76.37 | |||||
| 39 | WP371502 | Clamp Hose (2) (Replaces: 371502) |
|
$ 10.38 | |||||
| 40 | 303294 | Protector (2) |
|
- |
