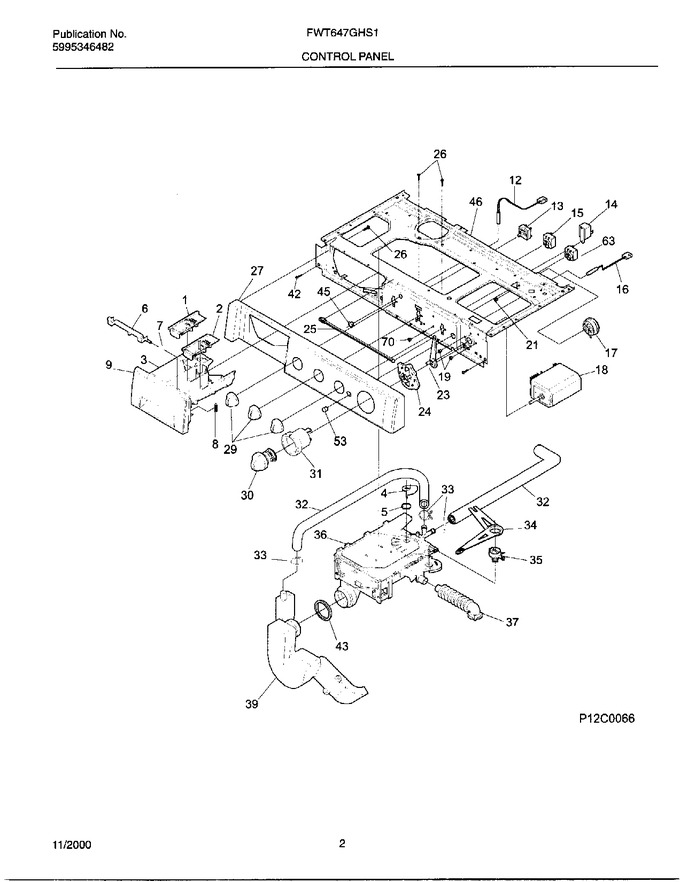

02 - Control Panel


04 - Wshr Cab,door


06 - Wshr Tub,motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
4	131271300		Pin		Appelez-nous	-
5	131271200		Spring				$ 24.59
6	131374500		Latch-handle				$ 44.45
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131691229		Asmy-disp Drwr/handle/trim		Appelez-nous	-
13	131729000		Switch-water Temp		Appelez-nous	-
14	131724500		Buzzer				$ 72.82
15	131243200		Switch-extra Rinse/speed		Appelez-nous	-
16	131349000		Light-pilot		Appelez-nous	-
18	131800500		Timer-washer F/l				$ 200.55
19	131670300		Screw-timer,10-32 X 0.245 ,quadrex Ph		Appelez-nous	-
21	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
23	131270200		Lever-cam				$ 50.98
24	131856300		Cam-timer		Appelez-nous	-
25	131271400		Rod				$ 50.43
26	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
27	131691016		Asmy-cons Frame/trim Fwt647-1				$ 85.90
29	131761704		Knob-rotary				$ 43.38
30	131446202		Asmy-timer Knob White				$ 79.28
31	131716300		Dial-timer-white				$ 81.11
33	131306215		Clamp				$ 13.47
34	131465200		Arm-pivot		Appelez-nous	-
35	131271500		Disp-eccentric				$ 29.18
36	131270300		Assy-detergent Dispenser,includes 1,2 ,3,4,5,35,and 37		Appelez-nous	-
37	131271600		Hose-tub				$ 90.01
39	131863300		Siphon				$ 30.96
42	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
45	5303321107		Bushing				$ 4.52
46	131730600		Bracket-control		Appelez-nous	-
53	131269601		Lens-pilot Light		Appelez-nous	-
63	131716900		Switch-speed Select				$ 49.61
70	5303015671		Screw,8-18 X .375		Appelez-nous	-
F12	131505900		Switch-reed		Appelez-nous	-
F17	131273700		Switch-pressure		Appelez-nous	-
F32	131272400		Hose-siphon/fill				$ 85.84
NI	131806000		Harness-h-axis Siemens Mtr		Appelez-nous	-
NI	131307900		Clamp-siphon To Bellows				$ 11.34
NI	131931200		Vibration Dampener		Appelez-nous	-
