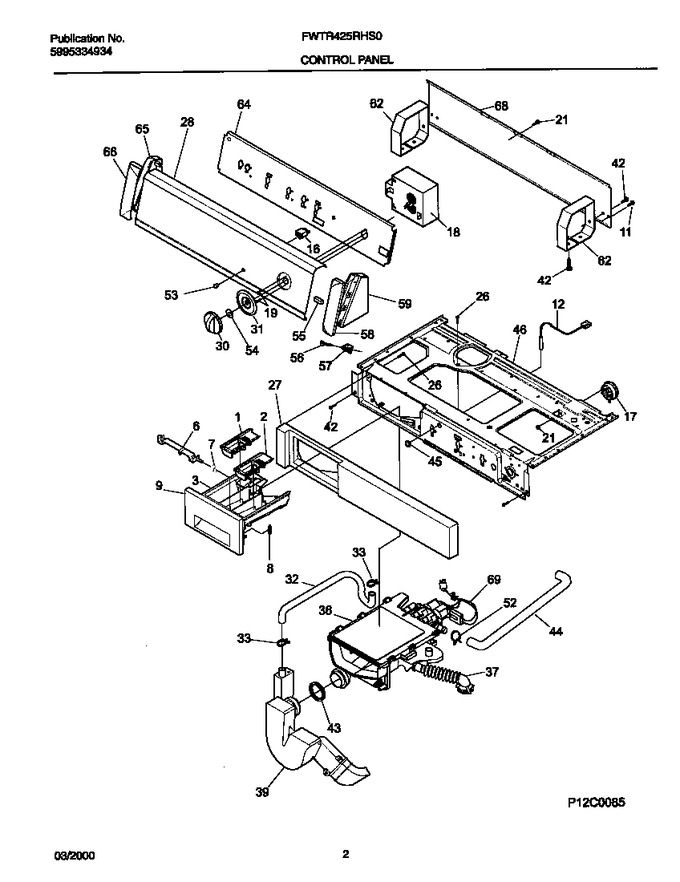

02 - P12c0085 Control Panel


04 - P12t0050 Wshr Tub,motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131444814		Assy-dispenser Drawer/handle		Appelez-nous	-
6	131714900		Latch Handle				$ 44.94
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131729500		Handle-dispenser				$ 150.03
11	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
12	131505900		Switch-reed		Appelez-nous	-
16	131724700		Light-pilot				$ 59.59
17	131273700		Switch-pressure		Appelez-nous	-
18	131906200		Timer-wshr F/l Elec F				$ 210.63
19	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
21	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
26	131823400		Scr 8-18x2.000				$ 1.42
27	131870600		Panel-dispenser Drawer				$ 204.49
28	131937900		Trimplate Fwtr425rhs		Appelez-nous	-
30	131140601		Knob-timer-white				$ 65.21
31	131140705		Pointer-timer Wht/gray Ind				$ 30.93
32	131786100		Hose-dispenser				$ 66.62
33	131306215		Clamp				$ 13.47
36	131805500		Asmy-detergent Disp		Appelez-nous	-
37	131271600		Hose-tub				$ 90.01
39	131272300		Duct-fill		Appelez-nous	-
42	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
44	131786000		Hose-dispenser				$ 114.98
45	5303321107		Bushing				$ 4.52
46	131810011		Panel-cont Mtg-wing Bend		Appelez-nous	-
52	131306242		Clamp				$ 4.94
53	131724800		Lens-pilot Light				$ 12.06
54	5308015493		Spacer-timer Shaft				$ 14.36
55	131507701		Spacer Pad		Appelez-nous	-
56	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
57	131197000		Clip-control Panel				$ 13.62
58	131122601		Cover-end Cap, White, Rh				$ 47.20
59	131122701		End Cap, White, Rh				$ 53.29
62	131721500		Bracket-console Support		Appelez-nous	-
64	131728900		Bracket-control		Appelez-nous	-
65	131122711		End Cap,white ,lh				$ 58.38
66	131122611		Cover-end Cap, White, Lh				$ 42.21
68	131141730		Backsheet		Appelez-nous	-
69	131907500		Harness-dispenser				$ 72.71
*88320	131872200		Harness-lower		Appelez-nous	-
*88321	131938800		Harness-console		Appelez-nous	-
