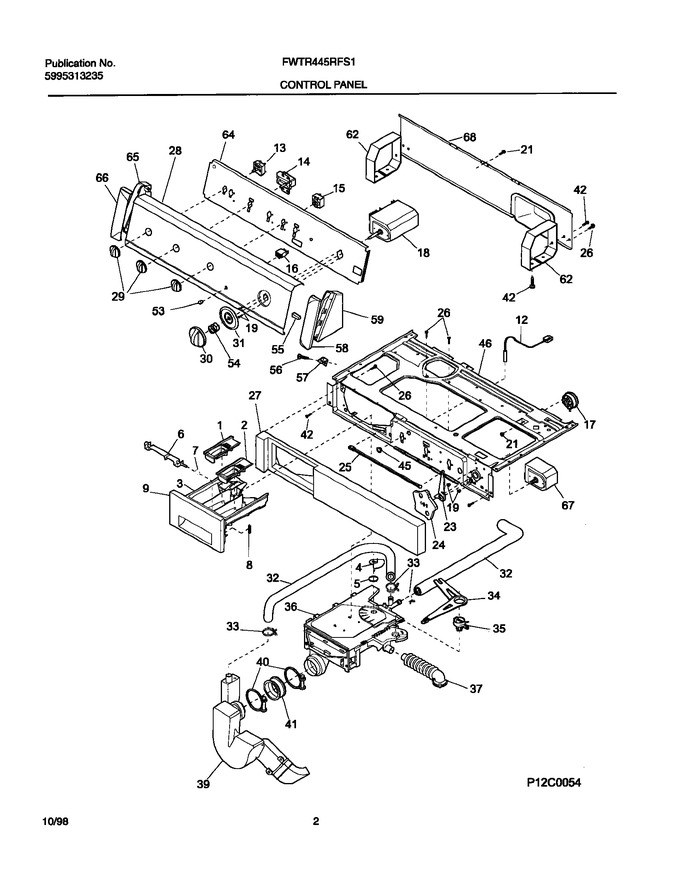

03 - Control Panel


05 - Cabinet/door/top


07 - Tub/motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271900		Drawer-dispenser		Appelez-nous	-
4	131271300		Pin		Appelez-nous	-
5	131271200		Spring				$ 24.59
6	131714900		Latch Handle				$ 44.94
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131729500		Handle-dispenser				$ 150.03
13	131729000		Switch-water Temp		Appelez-nous	-
15	131243200		Switch-on/off		Appelez-nous	-
16	131724700		Light-pilot				$ 59.59
18	131717100		Timer				$ 254.89
19	131670300		Screw-timer,10-32x.245 ,quadrex Ph		Appelez-nous	-
21	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
23	131270200		Lever-cam				$ 50.98
24	131724400		Cam-dispenser Motor		Appelez-nous	-
25	131271400		Rod				$ 50.43
26	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
27	131718600		Panel-top Front		Appelez-nous	-
28	131746900		Trimplate Fdh8drdf		Appelez-nous	-
29	131141101		Knob-rotary, White/blue		Appelez-nous	-
30	131720300		Knob-timer				$ 52.40
31	131720400		Dial-timer-white				$ 31.45
33	131306215		Clamp				$ 13.47
34	131465200		Arm-pivot		Appelez-nous	-
35	131271500		Disp-eccentric				$ 29.18
36	131270300		Dispenser Assy,includes 1,2 ,3,4,5,35,and 37		Appelez-nous	-
39	131272300		Duct-fill		Appelez-nous	-
40	131333100		Clamp				$ 19.80
41	131272200		Ring-junction		Appelez-nous	-
42	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
45	5303321107		Bushing				$ 4.52
46	131730600		Bracket-controls		Appelez-nous	-
53	131724800		Lens-pilot Light				$ 12.06
54	131720700		Spring-timer Knob				$ 6.16
55	131507701		Spacer Pad		Appelez-nous	-
56	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
57	131197000		Clip-control Panel				$ 13.62
58	131122601		Cover-end Cap, White, Rh				$ 47.20
59	131122701		End Cap, White, Rh				$ 53.29
62	131721500		Bracket-console Support		Appelez-nous	-
64	131728900		Bracket-controls		Appelez-nous	-
65	131122711		End Cap,white ,lh				$ 58.38
66	131122611		Cover-end Cap, White, Lh				$ 42.21
67	131715600		Dispenser Motor		Appelez-nous	-
68	131141710		Backsheet-console		Appelez-nous	-
F12	131505900		Switch-reed		Appelez-nous	-
F14	131048300		Buzzer		Appelez-nous	-
F17	131273700		Switch-pressure		Appelez-nous	-
F32	131272400		Hose-siphon/fill				$ 85.84
F37	131271600		Hose-tub				$ 90.01
NI	131747000		Harness-main		Appelez-nous	-
NI	131783800		Harness-common-top Console		Appelez-nous	-
NI	131307900		Clip-bellows To Fill Duct				$ 11.34
