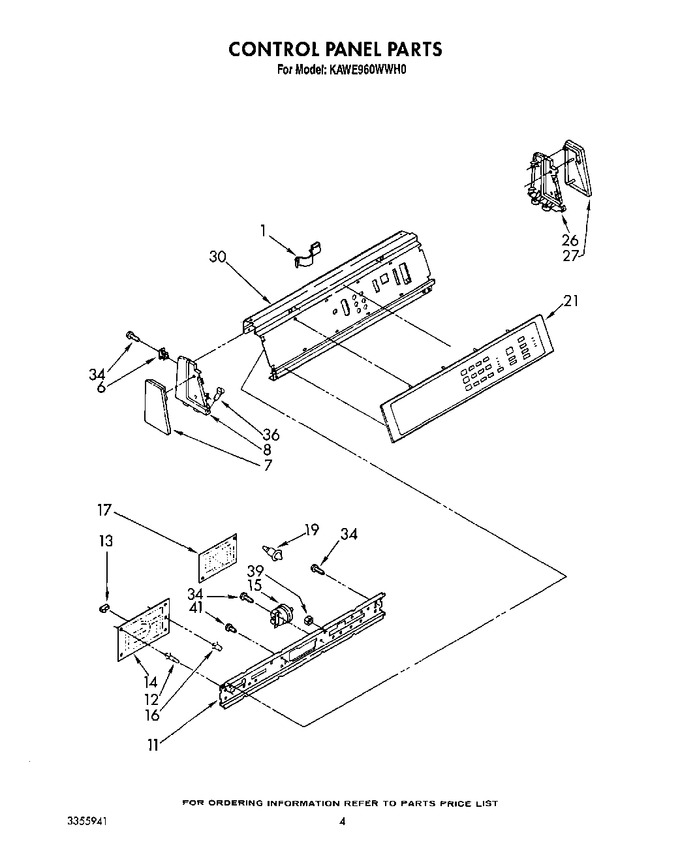

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
6	689559		Nut, Push-in (2)		Appelez-nous	-
7	3356028		Trim, End Cap (l.h.)		Appelez-nous	-
8	3354640		Cap, End (l.h.)		Appelez-nous	-
11	3348550		Bracket, Control		Appelez-nous	-
12	313087		Support, Circuit Board		Appelez-nous	-
13	3407005		Connector, Two Terminal		Appelez-nous	-
14	3407044		Microcomputer		Appelez-nous	-
15	3347693		Switch, Water Level		Appelez-nous	-
16	772566		Support, Circuit Board		Appelez-nous	-
17	3356376		Relay, Power Control Board		Appelez-nous	-
19	3349370		Support, Power Control		Appelez-nous	-
21	3356398		Touch Module		Appelez-nous	-
26	3354646		Cap, End (r.h.)		Appelez-nous	-
27	3356049		Trim, End Cap (r.h.)		Appelez-nous	-
30	3353418		Panel, Control Board And Standoff Mounting (8)		Appelez-nous	-
34	WP90767		Screw, 8a X 3/8   (Replaces: 3348629)			Immediately	$ 7.04
36	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
39	3407038		Nut (8)		Appelez-nous	-
41	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
