SELECT A DIAGRAM

01 - Cover

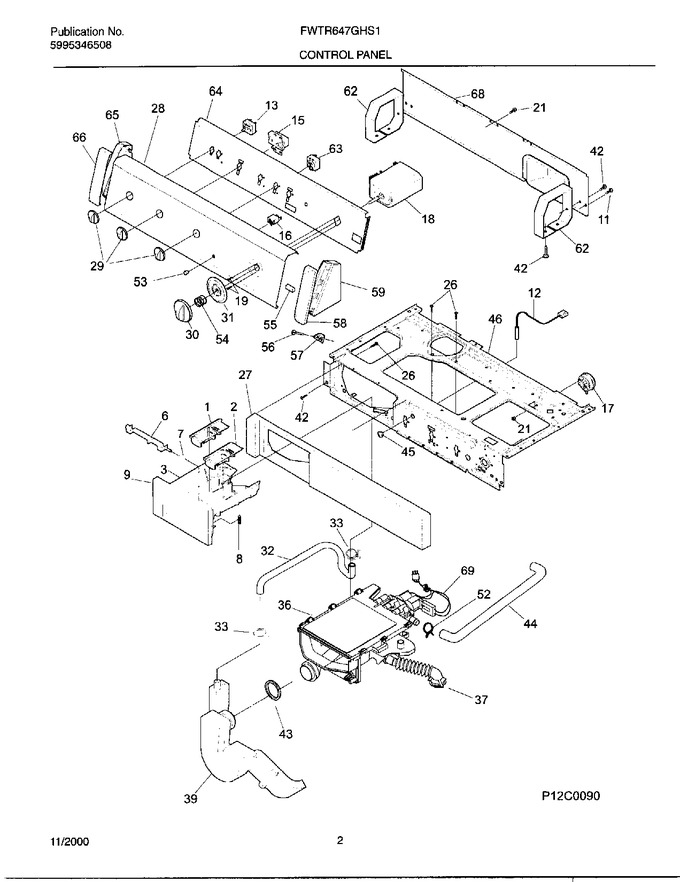

02 - Control Panel


04 - Wshr Cab,door


06 - Wshr Tub,motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271900		Drawer-dispenser		Appelez-nous	-
6	131714900		Latch Handle				$ 44.94
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131729500		Handle-dispenser				$ 150.03
11	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
13	131729000		Switch-water Temp		Appelez-nous	-
15	131243200		Switch-extra Rinse/speed		Appelez-nous	-
16	131724700		Light-pilot				$ 59.59
18	131801000		Timer				$ 149.21
19	131670300		Screw-timer,10-32 X 0.245 ,quadrex Ph		Appelez-nous	-
21	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
26	131823400		Scr 8-18x2.000				$ 1.42
27	131870600		Panel-dispenser Drawer				$ 204.49
28	134010800		Trimplate Fwtr647ghs1		Appelez-nous	-
29	131141105		Knob-rotary,white/gray				$ 33.34
30	131720300		Knob-timer				$ 52.40
31	131720403		Dial-timer		Appelez-nous	-
32	131786100		Hose-dispenser				$ 66.62
33	131306215		Clamp				$ 13.47
36	131803700		Asmy-detergent Dispenser		Appelez-nous	-
37	131271600		Hose-tub				$ 90.01
39	131863300		Siphon				$ 30.96
42	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
44	131786000		Hose-dispenser				$ 114.98
45	5303321107		Bushing				$ 4.52
46	131810012		Panel-cont Mtg-wing Bend		Appelez-nous	-
52	131306242		Clamp				$ 4.94
53	131724800		Lens-pilot Light				$ 12.06
54	131720700		Spring-timer Knob				$ 6.16
55	131507701		Spacer Pad		Appelez-nous	-
56	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
57	131197000		Clip-control Panel				$ 13.62
58	131122601		Cover-end Cap, White, Rh				$ 47.20
59	131122701		End Cap, White, Rh				$ 53.29
62	131721500		Bracket-console Support		Appelez-nous	-
63	131716900		Switch-speed Select				$ 49.61
64	131728900		Bracket-control		Appelez-nous	-
65	131122711		End Cap,white ,lh				$ 58.38
66	131122611		Cover-end Cap, White, Lh				$ 42.21
68	131787400		Backsheet-console W/guard		Appelez-nous	-
69	131858600		Harness-dispenser				$ 23.78
F12	131505900		Switch-reed		Appelez-nous	-
F17	131273700		Switch-pressure		Appelez-nous	-
NI	131917300		Harness-console		Appelez-nous	-
NI	131844400		Harness-lower				$ 391.44
NI	131307900		Clamp-siphon To Bellows				$ 11.34
NI	131169500		Buzzer				$ 44.20
