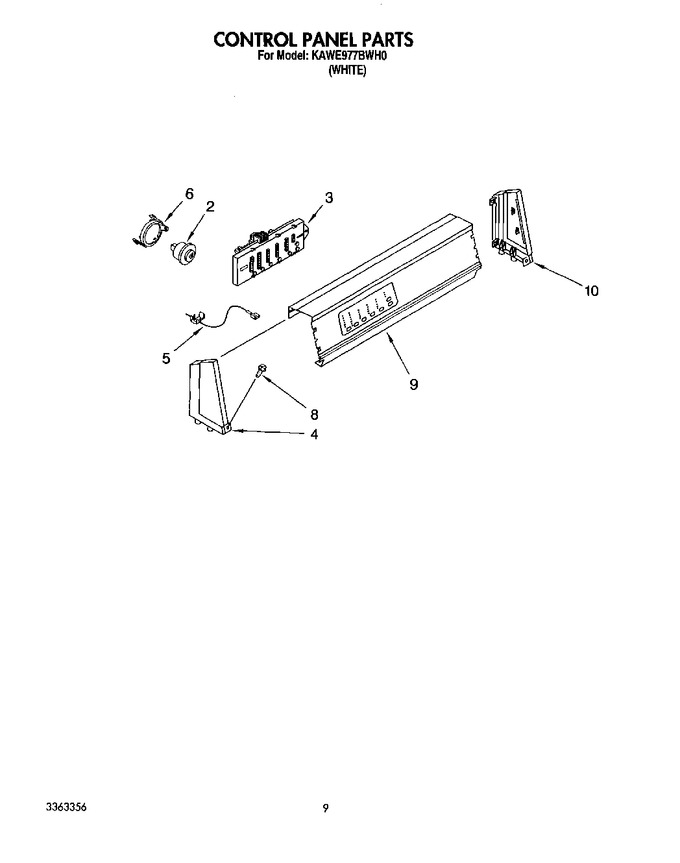

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3362142		Pressure Transducer		Appelez-nous	-
3	3359347		Electronics (relay Board)		Appelez-nous	-
4	3360570		Cap, End (l.h.) (for White Model)		Appelez-nous	-
5	3361436		Wire, Ground		Appelez-nous	-
6	3360748		Retainer, Pressure Transducer		Appelez-nous	-
8	WP388326		Screw, Console   (Replaces: 3353145)				$ 7.30
9	3363756		Console, Panel (for White Model)		Appelez-nous	-
10	3360567		Cap, End (r.h.) (for White Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
