SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Wshr Cab,door


04 - Wshr Tub,motor

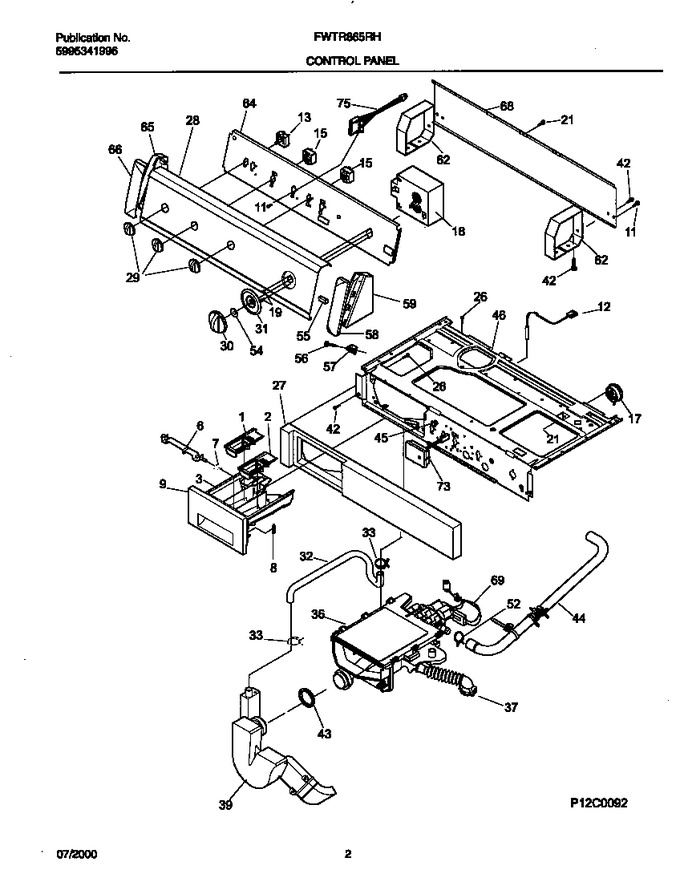

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131444814		Assy-dispenser Drawer/handle		Appelez-nous	-
6	131714900		Latch Handle				$ 44.94
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131729500		Handle-dispenser				$ 150.03
11	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
12	131505900		Switch-reed		Appelez-nous	-
13	131891700		Switch-temp 7pos-atc Frt Load		Appelez-nous	-
15	131243200		Switch-extra Rinse/speed		Appelez-nous	-
17	131273700		Switch-pressure		Appelez-nous	-
18	131854300		Timer-washer Mallory		Appelez-nous	-
19	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
21	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
26	131823400		Scr 8-18x2.000				$ 1.42
27	131870600		Panel-dispenser Drawer				$ 204.49
28	131938000		Trimplate W/lens Fwtr865rhs		Appelez-nous	-
29	131141105		Knob-rotary,white/gray				$ 33.34
30	131140601		Knob-timer-white				$ 65.21
31	131140705		Pointer-timer Wht/gray Ind				$ 30.93
32	131786100		Hose-dispenser				$ 66.62
33	131306215		Clamp				$ 13.47
36	131974700		Asmy-disp Valve/seal			Immediately	$ 104.10
37	131271600		Hose-tub				$ 90.01
39	131863300		Siphon				$ 30.96
42	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
44	131899800		Asmy-thermistor/hose/clamp		Appelez-nous	-
45	5303321107		Bushing				$ 4.52
46	131810012		Panel-cont Mtg-wing Bend		Appelez-nous	-
52	131306242		Clamp				$ 4.94
54	5308015493		Spacer-timer Shaft				$ 14.36
55	131507701		Spacer Pad		Appelez-nous	-
56	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
57	131197000		Clip-control Panel				$ 13.62
58	131122601		Cover-end Cap, White, Rh				$ 47.20
59	131122701		End Cap, White, Rh				$ 53.29
62	131721500		Bracket-console Support		Appelez-nous	-
64	131728906		Brkt-cont Mtg-w/status Lights		Appelez-nous	-
65	131122711		End Cap,white ,lh				$ 58.38
66	131122611		Cover-end Cap, White, Lh				$ 42.21
68	131141730		Backsheet		Appelez-nous	-
69	131908000		Harness-disp Valve-haw W/atc				$ 98.49
73	131963800		Beeper Cont Hi W/pig Tail				$ 151.83
75	131949001		Asmy-lamp & Brkt-rear		Appelez-nous	-
*34160	131307900		Clamp-siphon To Bellows				$ 11.34
*34161	131908400		Harness-console Haw W/atc		Appelez-nous	-
*34162	131908800		Harness-rear Cons Taw W/atc		Appelez-nous	-
*34163	131891000		Automatic Temp Cont Board		Appelez-nous	-
*34164	131931200		Vibration Dampener		Appelez-nous	-
