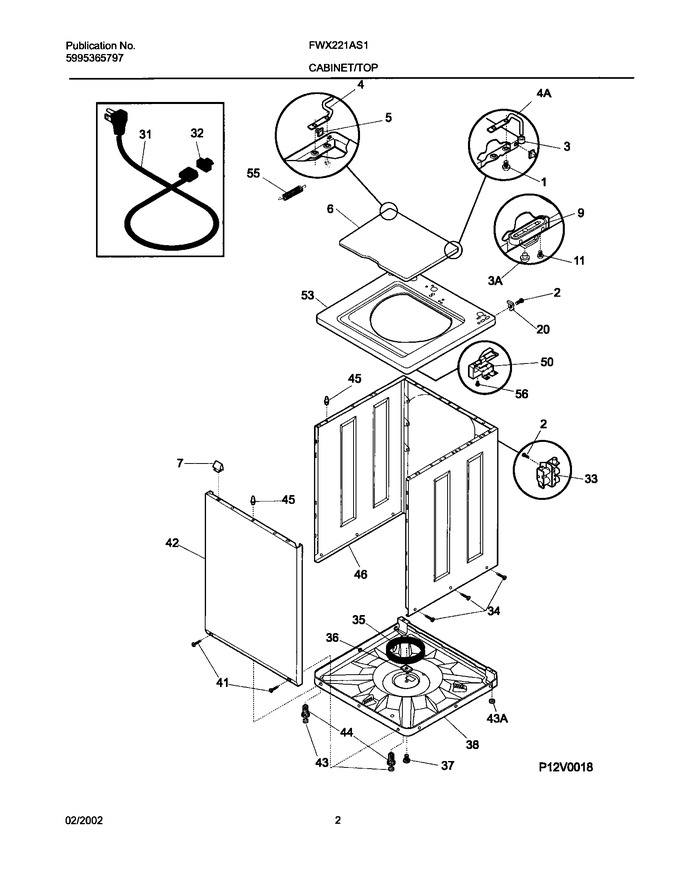

SELECT A DIAGRAM

01 - Cover


03 - Wshr Cab,top


05 - Wshr Mtr,hose


07 - Transmission


09 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134203900		Screw-hinge,pph 45deg Hdrpt ,6-32 X 0.3125   (Replaces: 131587500)				$ 10.85
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131433300		Bumper-hinge				$ 13.18
4	131385910		Hinge-bar,lh				$ 53.67
5	5303208743		Grommet-lid				$ 5.63
6	131374401		Lid, White, W/o Inst.				$ 112.37
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131390000		Strike-lid				$ 55.19
11	3204368		Screw-strike, Pfh B, 6-20 X .375				$ 13.01
20	5303208751		Hinge-rear Cabinet				$ 33.50
31	5304505407		Cord-service   (Replaces: 134100800)				$ 88.20
32	5303209428		Bushing-cord				$ 17.01
34	131205500		Screw-body, 1/4-14 X 0.625				$ 13.46
35	5308002385		Ring-snubber				$ 54.86
36	3204380		Block-shipping				$ 12.29
37	131658900		Screw-shipping				$ 6.77
38	5303311213		Base Assembly				$ 374.69
41	131302800		Screw-front Pnl,comb Th Ab ,10-16 X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
42	131104303		Panel - Front - White				$ 309.70
43	131422100		Pad-leveling Leg				$ 17.59
44	134548800		Leg-leveling, With Pad   (Replaces: 5303309673)			Immediately	$ 30.20
45	131346400		Pin, Locating				$ 12.44
46	134046600		Asmy-cabinet 3 Pc-white				$ 383.99
53	131452682		Panel-top Wht No Blch Fs Wshr		Appelez-nous	-
55	134890500		Spring-lid   (Replaces: 5303212876)				$ 19.85
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
3A	134075500		Bumper-lid				$ 17.35
43A	131422200		Pad-level Leg			Immediately	$ 56.70
4A	131374220		Hinge Bar R.h.				$ 42.30
F33	134190200		Valve-water   (Replaces: 131389300)			Immediately	$ 153.09
F50	ES1800		Lid Lock W/external Sw   (Replaces: 134101800)			Immediately	$ 61.20
NI	5303309503		Clip-backsheet				$ 7.09

    View Diagram in Separate Window       Print Part List
