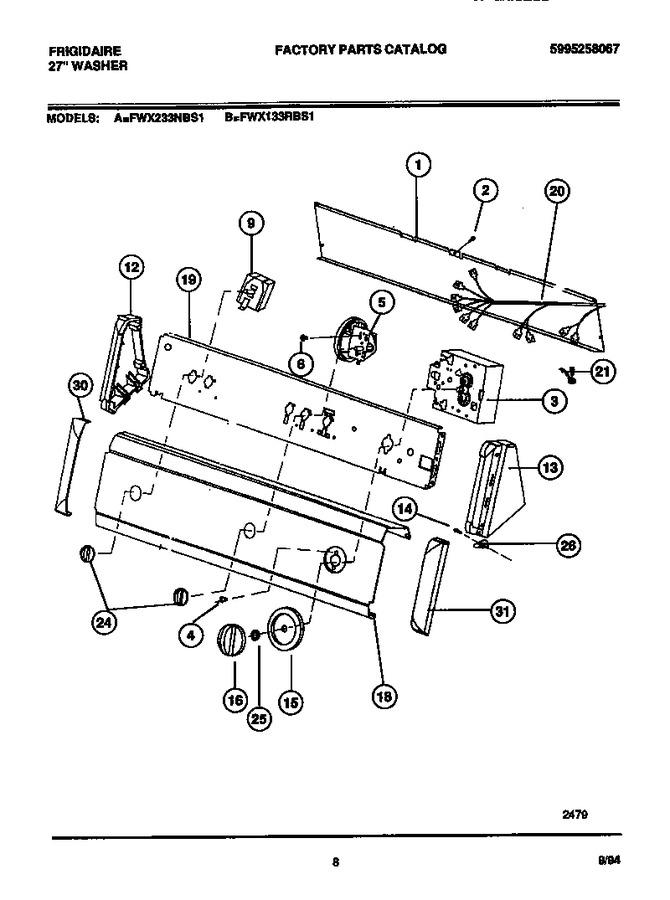

02 - Cabinet, Top Panel, Base
03 - Tubs, Hoses, Motor
04 - Transmission
05 - Console & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131141701 | Backsheet |
|
- | |||||
| 2 | 5308006553 | Screw (4) |
|
- | |||||
| 3 | 131237600 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047500 | Switch-pressure |
|
$ 186.53 | |||||
| 6 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 9 | 131047000 | Switch-temperature |
|
- | |||||
| 12 | 131122711 | End Cap-l.h.-white |
|
$ 58.38 | |||||
| 13 | 131122701 | End Cap-r.h.-white |
|
$ 53.29 | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131140701 | Dial-white |
|
$ 38.76 | |||||
| 16 | 131140601 | Knob-timer-white |
|
$ 65.21 | |||||
| 18 | 131251400 | Panel-control-white |
|
- | |||||
| 19 | 131157806 | Bracket Controls |
|
- | |||||
| 20 | 131166000 | Harness |
|
- | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 24 | 131141101 | Knob-rotary-white |
|
- | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 5300503065 | Clip |
|
$ 6.09 | |||||
| 30 | 131122611 | Cover-l.h.-white |
|
$ 42.21 | |||||
| 31 | 131122601 | Cover-r.h.-white |
|
$ 47.20 | |||||
| 21A | 5303281035 | Screw-grd-body (non-illustrated) |
|
- |
