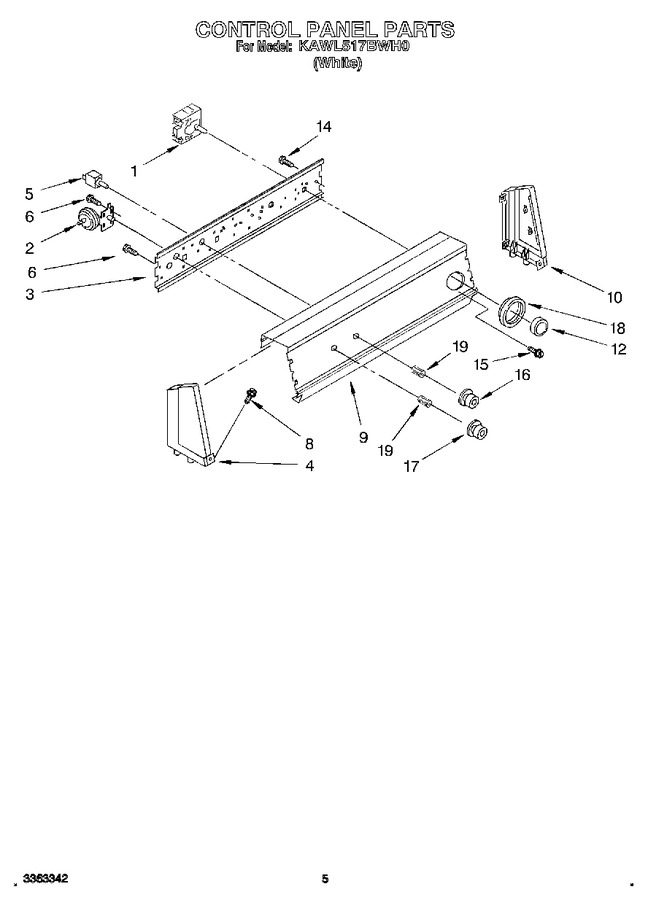

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3362622		Timer, Control 60 Hz. (motor Not A Service Part)		Appelez-nous	-
2	3356466		Switch, Water Level				$ 78.59
3	WP3948608		Bracket, Control   (Replaces: 3360936)				$ 104.57
4	3360570		Cap, End (l.h.)		Appelez-nous	-
5	334835		(alt.)		Appelez-nous	-
5	334711		(alt.)		Appelez-nous	-
5	661538		Switch, Water Temperature		Appelez-nous	-
6	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
8	WP388326		Screw, Console   (Replaces: 3353145)				$ 7.30
9	3361984		Console, Panel		Appelez-nous	-
10	3360567		Cap, End (r.h.)		Appelez-nous	-
12	3349234		Knob, Timer		Appelez-nous	-
14	WP3351614		Screw, Ground 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
15	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
16	3363437		Knob, Temperature Switch		Appelez-nous	-
17	3363437		Knob, Water Level Switch		Appelez-nous	-
18	3363039		Dial, Timer		Appelez-nous	-
19	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.03
