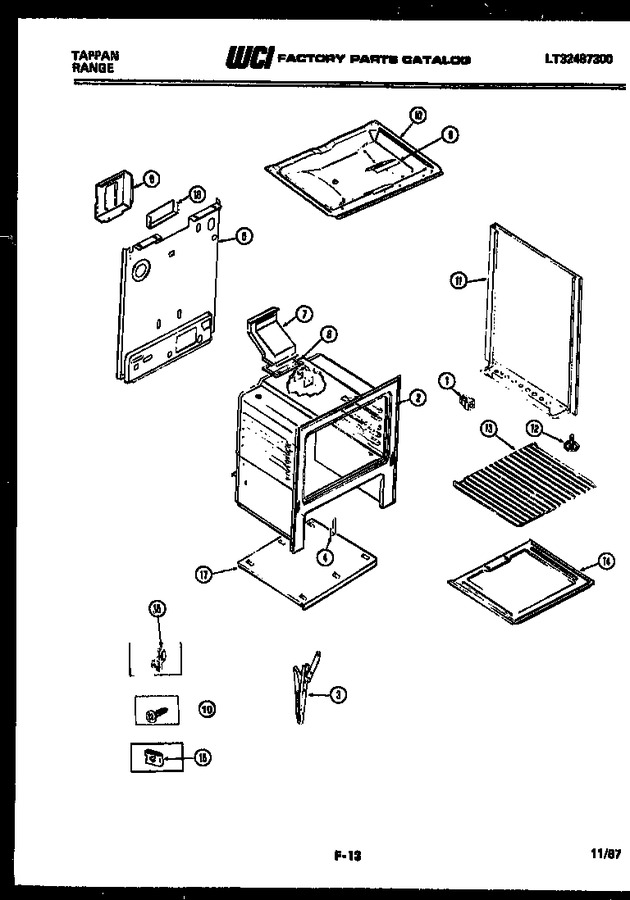

02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 665T188P02 | Spacer B/s |
|
- | |||||
| 3 | 3131569 | Channel Dr Hng (2) |
|
- | |||||
| 4 | 3131570 | Cover-hng Cutout |
|
$ 7.35 | |||||
| 5 | 3131567 | Back, Main |
|
- | |||||
| 6 | 655T421F02-18 | Shield-rear Well |
|
- | |||||
| 7 | 3131909 | Flue |
|
- | |||||
| 8 | 3131355 | Gasket, Flue |
|
- | |||||
| 9 | 3131101 | Cover, Plate |
|
- | |||||
| 10 | 3131185 | Burner Box |
|
- | |||||
| 11 | 3131453 | Pnl B/s-lh-almd |
|
- | |||||
| 11 | 3131454 | Pnl B/s-rh-almd |
|
- | |||||
| 12 | 636M004P01 | Screw - Leveling (4) |
|
- | |||||
| 13 | 3131973 | Rack |
|
- | |||||
| 14 | 058T036F02-86 | Bottom, Oven |
|
- | |||||
| 15 | 145T025P01 | Clip-thermo Bulb |
|
$ 1.76 | |||||
| 16 | 3131191 | Cover, Flue |
|
- | |||||
| 17 | 3131180 | Base, Broil |
|
- | |||||
| 18 | 241T017P235 | Fstnr-8 U Type (2) |
|
- | |||||
| 19 | 316282700 | Screw Ovn Bttm (non-illustrated) (Replaces: 3131732) |
|
$ 9.93 | |||||
| *86893 | 241T017P255 | Fstnr Power Cord |
|
- | |||||
| *86894 | 3015372 | Cover - Front Main |
|
- | |||||
| *86894 | 3051218 | Plate,oven Light |
|
- | |||||
| 14A | 3131201 | Insul. Oven Wrap (non-illustrated) |
|
- | |||||
| 14B | 3131246 | Insul Back (non-illustrated) |
|
- | |||||
| 16A | 3131903 | Bumper |
|
$ 55.36 | |||||
| 16B | 694T092F01 | Support-oven Btm (non-illustrated) |
|
- | |||||
| 18A | 3131192 | Cover, Rear Wall (non-illustrated) |
|
- |
