Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 500303L Cover,top Xreplace Appelez-nous -
3 34836 Assy,fluorescent Light Appelez-nous -
4 500308 Diffuser W/hole Appelez-nous -
5 504184L Assy,electronic Cont Appelez-nous -
6 34817L Panel,end-rh Appelez-nous -
7 Y00000000 See Note See Note Panel,home Hood Back Appelez-nous -
8 Y00000000 See Note See Note Cabinet,dryer Appelez-nous -
9 500301 Bracket,electronic Control Appelez-nous -
10 500529L Panel, Graphics Appelez-nous -
11 Y500528 Gasket,electronic Control Appelez-nous -
12 34818L Panel,end-lh Appelez-nous -
13 38424L Switch, Rocker (bsq) Special Order $ 2.74


    View Diagram in Separate Window     Print Icon   Print Part List

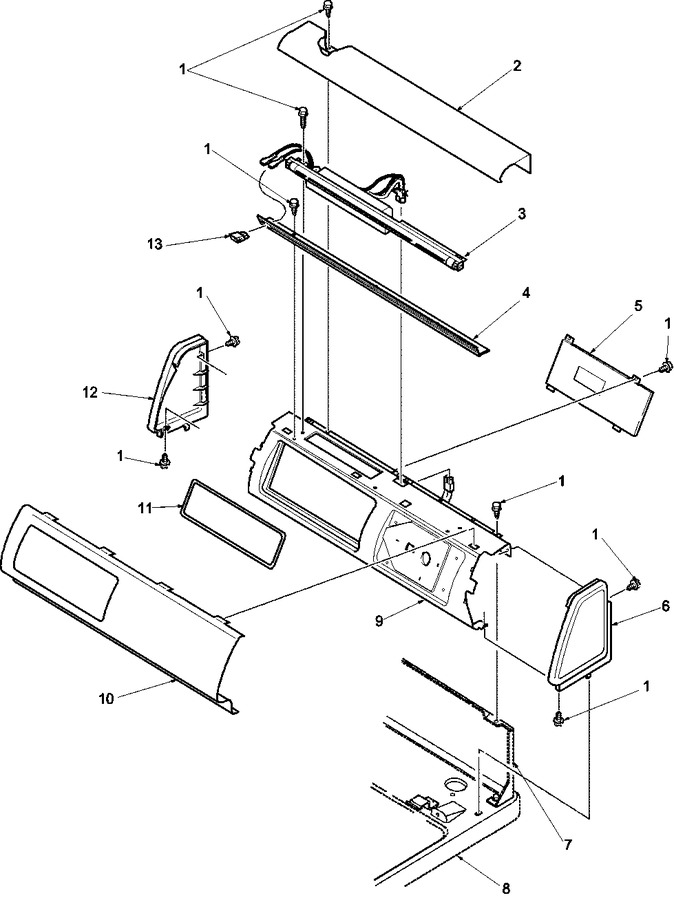

Diagram for LEA90AL (BOM: PLEA90AL)
